Simple & Wireless Operation 2 Position Actuator

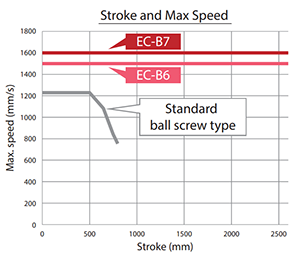

Stroke and Max Speed Chart
If the stroke increases for the standard ball screw type, the maximum speed will decrease due to the resonance of the ball screw. EC-B6/7 uses a belt drive system so that the maximum speed does not decrease at a long stroke.
2. Max. payload: 20kg

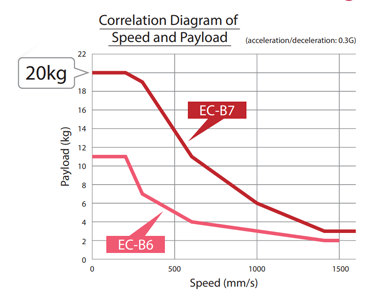

Correlation Diagram of Speed and Payload
3. The motor installation direction can also be changed after purchase
ELECYLINDER Downward facing motor specification
4. Can be bolted from the top, allowing for easy replacement
ELECYLINDER can be bolted from the top
5. Installation orientation Can be installed in any of the following orientations 5 *
ELECYLINDER horizontal on flat surface, horizontal side mounted, horizontal suspension
Main Specifications:
ELECYLINDER specifications
Dimensions:
ELECYLINDER dimensions
Download IAI Elecylinder® EC Belt Driven Type Datasheet
