Oil & Gas Leak Detection Solutions

TTK's oil and gas leak detection system is the suitable answer to detect and locate leaks of hydrocarbon liquids or non-conductive solvents and to effectively protect different environments. TTK oil leak detection systems can be used in hazardous areas with explosive atmospheres (ATEX "Zone 0") with zener barriers. Typical applications include:

Oil & Gas Leak Detection Solutions

Oil & Gas Leak Detection Solutions
Oil & Gas Leak Detection Solutions

Tank Farms

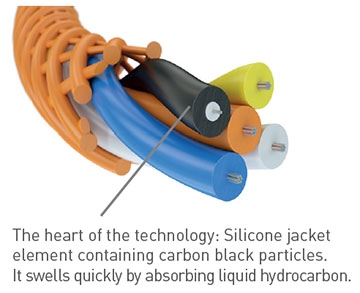

Storage tanks may leak through the tank walls or through the tank bottom. After some years of operation, a storage tank frequently experiences bottom corrosion either due to stored fluid or soil humidity. TTK's oil leak detection system with the FG-OD sensing cable provides continuous monitoring/protection and helps to prevent soil contamination and loss of valuable products.

The FG-OD sensing cable provides fully mapped, simultaneous leak locations across the network of cables together with an alarm and logging system.


Underground and Aboveground Pipelines

The FG-OD sensing cables are installed along the entire length of the pipeline to be monitored. It allows the detection of small quantities of liquid when coming into contact with the sensing cable. FG-OD sensing cables are addressable, reusable, and can detect multiple leaks over long-line systems.


Airport Fuel Hydrant System

Airports have a special application since the consequences of hydrant leaks can be very high due to its aviation activities. The key for leak detection in airports is to accurately locate the leak on a few kilometers of pipelines that are positioned under the apron.

TTK's system is the ideal solution for airport fuel hydrant systems. The sensing cables are installed under the pipelines and serviced through access risers on the apron. They ensure the continuous protection of the whole pipeline. In the event of a fuel leak, the TTK system provides an accurate location of the leak, thus significantly reducing the time and financial cost of repair.


Building Environment - Generator

Technical rooms in a commercial building such as power generator rooms are critical areas, especially after a power failure. TTK sensing cables are installed in the perimeter of the equipment to be protected.

Whenever a TTK water leak detection system (with FG-SYS or FG-NET monitoring panel) is already installed, it is easy to extend the installed system by deploying sense cables to monitor one or several rooms for possible oil leaks.
