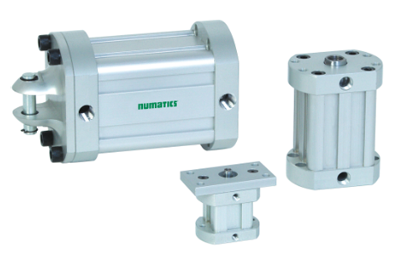

ASCO's C Series is a robust compact cylinder line that is designed to fit tight space requirements. The low profile design and variety of mounting options makes this cylinder line extremely popular. Furthermore, its unique style and diversity makes the C Series a one of a kind compact cylinder line.
The tube is hard coat anodized aluminum. The hard coating is an electro-chemical process, which produces a very dense surface of aluminum oxide. This surface has extreme hardness (60 RC.), excellent wear and corrosion resistance, and a low coefficient of friction. Additionally, profile tubing is standard on 3/4” through 2-1/2” bore sizes (3” and 4” bores are the tie rod configuration). The profile tubing has a custom dovetail groove on all sides for trouble-free switch and accessory mounting.
The end caps are accurately machined from solid aluminum bar stock. They are anodized for corrosion resistance. Additionally, a recess on the piston-mating surface (at both ends) enables the air to work on a larger piston area for effortless breakaway.
Features:- Robust compact and low profile cylinder, designed to fit tight space requirements.
- Easy to mount with 9 mounting styles available.
- Equipped with special "dovetail" grooves on all sides for easy switch and accessory mounting.
Applications:- Analytical ＆ Diagnostic Equipment
- Automotive
- Bottling
- Commercial Kitchen Equipment
- Commercial Laundry Equipment
- Dust Collector Systems
- Life Sciences
- Press Room ＆ Metal Stamping
- Refining
- Tire Manufacturing
- Winemaking
Click to Download Numatic C Series Brochure Call us today at
(855) 737-4716 to learn more, or fill out our
online form and someone will get back to you.
Click to Download Numatic C Series Brochure
