MELSERVO-JET LM Series Linear Servo Motors from Mitsubishi

The Mitsubishi Electric MELSERVO-JET LM Series Linear Servo Motors are high-speed, high-accuracy, linear drive systems.

MELSERVO-JET LM Series Basic Performance

  • Maximum speed: 3 m/s (LM-H3 series), 6.5 m/s (LM-AJ series)
  • Maximum thrust range: 175 N to 1800 N. Small size and high thrust.
  • The linear servo motors are compatible with a variety of serial interface linear encoders. The linear encoder resolution ranges from 1 nm and up.
  • High-performance systems such as high-accuracy tandem synchronous control are achieved with CC-Link IE TSN.
  • The linear servo motors feature environmental resistance, designed for an altitude of 2000 m and an ambient temperature of up to 60 ℃.

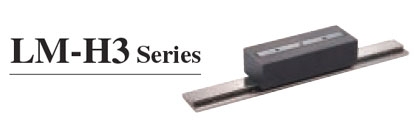

MELSERVO-JET LM-H3 Series Linear Servo Motors from Mitsubishi

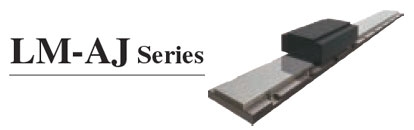

MELSERVO-JET LM-AJ Series Linear Servo Motors from Mitsubishi

Higher Machine Performance

  • Improved productivity due to high-speed driving part.
  • The linear servo motors enable a simple and compact machine with high rigidity.
  • Smooth operation and clean systems are achieved.
  • Multi-head and tandem systems are easily configured.
  • The linear servo motors are suitable for long-stroke applications.

Ideal for Multi-Head Systems

  • The linear servo motors configured in tandem are suitable for large systems that require highly accurate synchronous operation between two axes.
  • Multi-head systems enable control of two motor coils independently, thereby simplifying machine mechanisms. This system is suitable for machines that require a short cycle time.

LM-H3 Series / LM-AJ Series Structure

  • The motor primary side consists of laminated core and motor coil. The coil is inserted into the slots on the core. The entire section is molded with resin.
  • The secondary side consists of permanent magnets and a mounting plate. The permanent magnets are precisely positioned and fixed on the mounting plate, and then covered with stainless steel plate.
