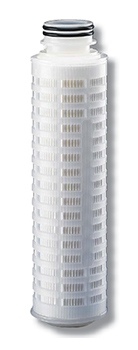

Parker Clariflow®-WE Cartridge

Economical Hydrophilic PES Membrane Cartridges for Aqueous Applications

Clariflow WE

Clariflow WE

Clariflow®-WE cartridges provide an economical way to filter fluids used in microelectronics such as DI water and aqueous-based chemicals. Constructed of the same high-quality materials as Clariflow®-E or E-SELECT, these cartridges are suited to less demanding applications with respect to fow and lifetime.

The combination of hydrophilic PES membrane and a high-purity, all-polypropylene support structure results in a very low level of ionic and organic extractables, broad chemical compatibility, and resistance to particle shedding.

Every cartridge is fabricated in a clean room environment, pre-flushed with 18 megohm-cm ultrapure DI water, and 100% integrity tested in an ISO-certified facility.


Parker Clariflow®-WE Cartridge Benefits:

  • Economical filtration
  • High-retention hydrophilic membrane
  • Broad chemical compatibility for multiple applications
  • 100% integrity tested


Parker Clariflow®-WE Cartridge Applications:

  • BOE
  • Dilute HF
  • POU DI rinse
  • Bulk DI water systems
  • Copper plating
  • Ni plating
  • Hard disk wash processes
  • Other dilute acids and bases


Parker Clariflow®-WE Cartridge Specifications:





Material of Construction
Membrane:  Polyethersulfone
Support layers:  Polypropylene
Structure:  Polypropylene
All components are thermally bonded to ensure integrity and minimize extractables.

Effective Filtration Area
5.4ft2(0.50m2) per 10 (250mm) cartridge

Maximum Differential
Pressure/Temperature
Forward:
80psid (5.5bar) @ 75°F (24°C)
40psid (2.8bar) @ 180°F (82°C)
Reverse:
50psid (3.4bar) @ 75°F (24°C)

Bulk Packaging
Bulk packaged in case quantities to reduce material disposal
10 28 per carton
20 12 per carton
30 12 per carton
40 9 per carton
