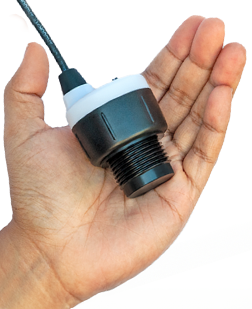

The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2” (1.25m) with a 4-20 mA signal output, and is configured via Flowline's WebCal software. Select this sensor for small tanks with non-foaming, non-condensing or highly vaporous media such as chemical, water, wastewater and oil. Typical applications include chemical feed, skid or machine, IBC or drum and small waste sumps.
Features
EchoPod® DL10 Ultrasonic Liquid Level Sensor Transmitter Features:
- Continuous non-contact level measurement up to 49.2” (1.25m)
- 4-20 mA output for longer signal distances up to 1000’ (300m)
- Configuration is fast and easy via WebCal software and USB adapter
- Narrow 2” beam width and short 2” dead band optimized for small tanks
- PVDF transducer and 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement
Specifications
EchoPod® DL10 Ultrasonic Liquid Level Sensor Transmitter Specifications:
| Specification | Value |
|---|---|
| Range | 49.2” (1.25 m) |
| Accuracy | 0.125” (3 mm) |
| Resolution | 0.019” (0.5 mm) |
| Dead band | 2” (5 cm) |
| Beam width | 2” (5 cm) |
| Configuration | WebCal™ PC, Windows®, USB 2.0 |
| Memory | Non-volatile |
| Supply voltage | 24 VDC (loop) |
| Consumption | 0.5 W |
| Loop resistance | 400 Ω max |
| Signal output | 4–20 mA, two-wire |
| Signal invert | 4–20 mA or 20–4 mA |
| Loop fail-safe | 4 mA, 20 mA, 21 mA, 22 mA, or hold last |
| Process temperature | F: 20° to 140° / C: -7° to 60° |
| Temperature compensation | Automatic |
| Ambient temperature | F: -31° to 140° / C: -35° to 60° |
| Pressure | MWP = 30 PSI (2 bar) |
| Enclosure rating | Type 6P, encapsulated, corrosion-resistant & submersible |
| Enclosure material | Polycarbonate |
| Strain relief material | Santoprene |
| Transducer material | PVDF |
| Cable jacket material | Polyurethane |
| Cable type | 4-conductor, shielded |
| Cable length | 48” (1.2 m) |
| Process mount | 1” NPT (1” G) |
| Mount gasket | Viton® |
| Classification | General purpose |
| Compliance | CE, RoHS |
| Approvals | cFMus |
Q&A
EchoPod® DL10 Ultrasonic Liquid Level Sensor Transmitter Q & A
+ What is the measurement range of the EchoPod DL10?
Continuous level measurement up to 49.2″ (1.25 m)
+ What output signal does the DL10 provide?
A 4–20 mA two-wire analog output
+ How is the device configured?
It uses Flowline's free WebCal software via USB adapter (“Fob”)
+ Does the DL10 compensate for temperature changes?
Yes—automatic temperature compensation is included
+ What is the accuracy and resolution?
Accuracy: 0.125″ (3 mm); Resolution: 0.019″ (0.5 mm)
Downloads
Download EchoPod® DL10 Ultrasonic Liquid Level Sensor Transmitter Datasheet
