Vertical Type Robot from Mitsubishi

Mitsubishi's Vertical Type Robots are suitable for a broad range of layouts, from transporting machine parts to assembling electrical components.

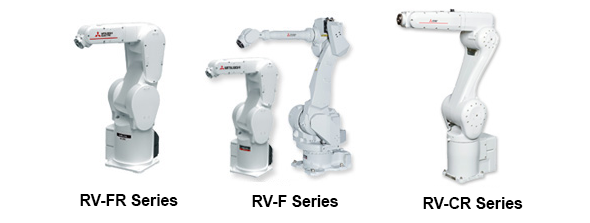

Vertical Type Robot R Series
  • RV-FR: "Next-generation intelligent functions", "Safe, collaborative work applications", and "FA-IT integration functions". With these 3 key features, the FR Series is capable of handling virtually all your automation needs.

  • RV-CR: Slim & Compact Robot Offering a High Level of Utility and Design. Its structure features minimal protrusions, resulting in reduced interference with surroundings when the robot operates. This makes it suited to integration with automation cells and manufacturing equipment.

  • RV-F: The latest series of MELFA robot which equipped with advanced technology and easy-to-use features. iQ Platform type RV-F-Q series and standalone type RV-F-D series.


Vertical Type Robot Features:

  • Optimized arm length and 6 joints for a broader range of movement support complex assembly and process operations.
  • Compact body and slender arms capable of covering a large work area and large load capacity.
  • Suitable for a broad range of layouts, from transporting machine parts to assembling electrical components.
  • Designed to withstand environmental conditions, making it ideal for a wide range of applications without having to worry about the installation environment.


Vertical Type Robot Features Benefits:

  • Intelligent Technology
    • Through the use of highly accurate vision sensors and force sensors that control the levels of force applied by robots, it is now possible to automate extremely difficult tasks that have been beyond the scope of automation in the past.

      The function expansion option named "MELFA Smart Plus" is available with MELFA FR series.

      Overview of intelligent technology:

      • Force sensor
      • 3D vision sensor
      • 2D vision sensor
      • Preventing interference (iQ Platform)
      • Cooperative control (iQ Platform)
      • Multi-function gripper
      • Tracking

      Other functions: Tracking accuracy enhancement function, singular point transit, orthogonal compliance functions, etc.

  • Dedicated Motors
    • Using motors developed in-house, highly rigid arms and their original drive control technology, these machines are capable of high-torque output at high rotation speeds, giving better operating performance.
    • Their capacity for continuous operation is also improved, with higher productivity due to the shorter cycle times.

  • Expanded Pivotal Operating Range
    • Improved flexibility for robot layout design considerations.

      Enabling more effective use of access space around the entire perimeter including to the rear. Shortened movement distances, enabling cycle times to be shortened.

  • Preventing Cable Interference
    • Internal wiring channels provided in the tip axis. Allows wiring and tubes to be routed internally up to the gripper mount.
    • By routing the body cables internally, areas where body cables might interfere with peripheral equipment can be minimized and the problem of wiring and tube tangles can be eliminated.


Contact us at (855) 737-4716 to learn more, or fill out our online form.
