Balluff’s Wireless IO-Link system reduces the need for cumbersome cables, offering a reliable and high-performance communication standard that simplifies integration, enhances mobility, and reduces wear and tear on connectors and cables. With its easy installation and configuration, whether you're looking to upgrade your existing systems or design new ones, the IO-Link Wireless System by Balluff is your ideal solution for efficient and effective industrial communication.

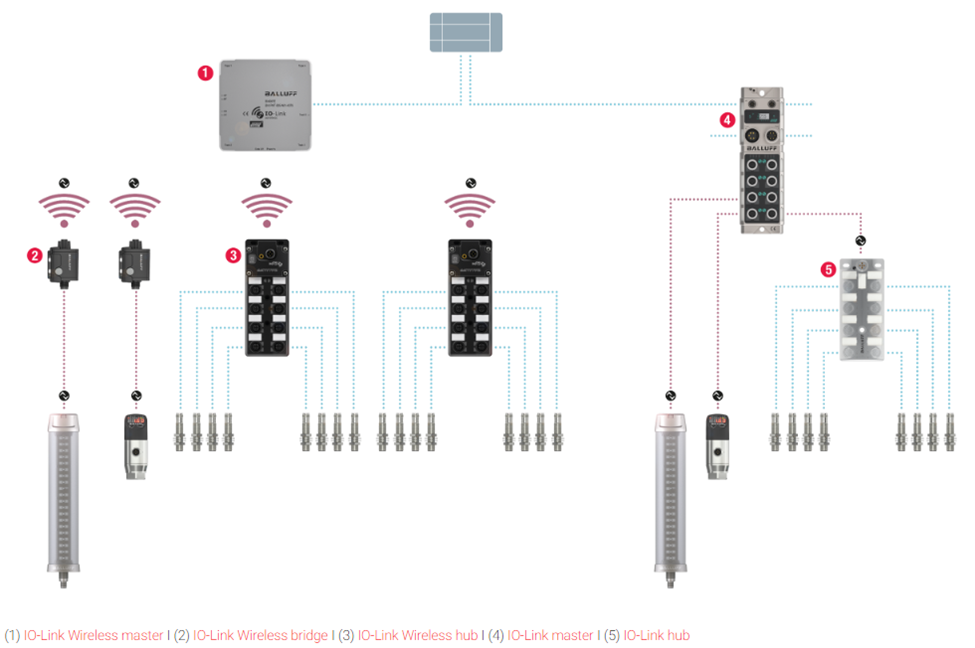

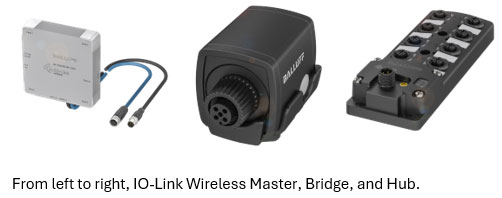

The wireless system consists of a master, hub and bridge. The wireless master does not receive its data by cable, as is usually the case, but receives the sensor data via a bridge or hub by radio. This brings significant advantages over a wired system - including easier planning and installation, more flexibility in design and mobility, and makes it easier to retrofit existing systems.
IO-Link Wireless System Features
- Easy Configuration: Set up your system effortlessly with an integrated web server.
- Global Frequency Range: Operates on a 2.4 to 2.483 GHz frequency range, which is usable worldwide and license-free.
- High Performance: Achieves a fast and reliable communication with a latency of just 5ms and an exceptionally low error rate of 10⁻⁹.
- Scalability: Capable of integrating up to 40 devices, making it easily expandable to meet growing needs.
- Robust Design: Supports operation in temperatures ranging from -5°C to +50°C, with M12 connections and an IP67 rating for durability.
- Compliance: Meets CE, UKCA, UL, FCC, IC, and IO-Link standards, ensuring broad applicability and regulatory compliance.
IO-Link Wireless System Benefits
- Enhanced Flexibility: Simplifies planning and installation, facilitates system retrofitting, and supports dynamic applications.
- Improved Mobility: Ideal for dynamic environments like transport systems, allowing precise monitoring and positioning without the constraints of cables.
- Reduced Maintenance: Eliminates wear and tear on connectors, reducing maintenance costs and downtime.
- Reliable Communication: Maintains the trusted reliability and performance of the wired IO-Link standard in a wireless format.
- Future-Proof: Designed to support the factory of the future with scalable and easily expandable capabilities, accommodating technological advancements and growth.
- Global Usability: Licensed for use in Europe, USA, and Canada, ensuring wide applicability and compliance across different regions.
Applications
Balluff's IO-Link Wireless System excels in various applications, particularly in environments requiring dynamic motion and flexibility. It is perfect for:
- Robotics: Enhances robotic operations by eliminating the complexity and cost of cabling, making robots more agile and efficient.
- Transport Systems: Enables precise tracking of movement in highly dynamic transport applications.
- Industrial Automation: Facilitates control and monitoring in challenging industrial conditions, ensuring seamless data transmission and system integration.
If you’re facing challenges with wired communication systems in dynamic motion control applications, Balluff’s Wireless IO-Link system provides a transformative solution. By addressing the root causes of inefficiencies, it paves the way for a more flexible, efficient, and future-ready industrial environment.
Lean more about Overcoming Cable Problems in Dynamic Motion Control Applications with Balluff's Wireless IO-Link.
Talk to one of our automation experts today at (855) 737-4716 or fill out our online form to learn more.
