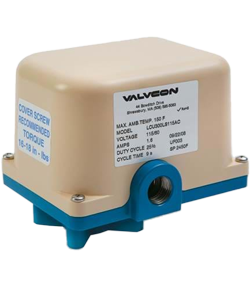

VALVCON® LCU-Series Electric Actuator
Economical Unidirectional Actuator for Ball Valve Applications
The VALVCON LCU-Series actuator is designed to be one of the most cost effective units available; reliable and inherently low-maintenance, it provides long-term efficiencies beyond its initial low price. LCU-Series actuators are designed for applications that require single direction actuation.
VALVCON® LCU-Series Electric Actuator Features
- Compact and lightweight
- Available in AC and DC models
- Economical unidirectional on/off actuation
VALVCON® LCU-Series Electric Actuator Benefits
- Long-term reliability
- No maintenance required
- Low cost of ownership
- Easy installation and set up
VALVCON® LCU-Series Electric Actuator Specifications
SERIES: LCUTORQUE OUTPUT: 17-68 Nm, 150-600 lb-in, 12-50 lb-ft
DUTY CYCLE: 25% or 80%
OPERATION: Undirectional
ENCLOSURE: NEMA 4/4X
TEMPERATURE RANGE*): 0 - 66 °C / 32 - 150 °F
VOLTAGE: 24VAC, 115VAC, 230VAC duty cycle 25% | 12VDC, 24VDC duty cycle 80%
Download VALVCON LCU-Series Electric Actuator Datasheet
Contact us at (855) 737-4714 to learn more, or fill out our online form.
