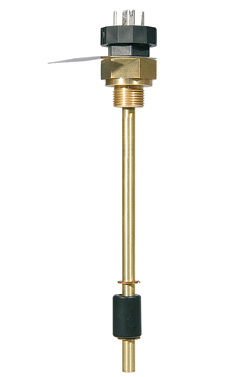

The level switch UNS1000-BN18 made of brass is constructed for level and temperature monitoring of hydraulic tanks "Power Packs". Modern hydraulic reservoirs have a high specific output volume that can result in high oil temperatures under load. Level and temperature monitoring is a unrenounceable safety factor for the complete plant.
Features
UNS1000-BN18 Level and Temperature Monitoring Features
- Process connection: G1/2" or M20 x 1,5 mm
- Compact design
- Bulkhead and contac tube: Brass
Specifications
UNS1000-BN18 Level and Temperature Monitoring Specifications
| Specification | Details |
|---|---|
| Materials | |
| Bulkhead union | Brass |
| Contact tube | Brass |
| Float stopper | Bronze |
| Float | Foamed NBR |
| System of protection | IP65 |
| Housing | — |
| Process connection | Male thread: G1/2" DIN ISO 228-1 = T1/2M20 x 1.5 DIN 13 |
| Electrical connection | Plug M12 x 1, 4-pin, PA Plug DIN EN 175301-803-A (former DIN 43650), 4-pin, PA Cable gland, PA |
| Electrical values | max. 24 V AC / DC max. 1 A max. 15 VA / W |
| Operating temperature | -10 °C … +90 °C (14 °F … 194 °F) |
| Operating pressure | max. 4 bar (400 kPa = 58 psi) |
| Density | min. 0.64 g/cm³ |
| Depth of immersion at density 1 | 15 ±2 mm |
| Temperature switch | |
| Temperature element | Bimetal |
| Temperature range | 10 K-steps +60 °C … +90 °C (140 °F … 194 °F) |
| Indexing tolerance | ±10 K |
| Differential gap | 30 ±15 K |
| Contact | NC (the contact is closed at room temperature) |
| Dual switch | |
| Switching points | Standard: 1 float for 1 switching pointDual: 1 float for 2 switching points |
| Distance L1 - L2 | min. 32 mm |
| Kind of contact (opt.) | acc. to ASAM (L1 = Pin 1+2 / L2 = Pin 1+4) only with M12 x 1 |
| Approval | — |
Applications
UNS1000-BN18 Level and Temperature Monitoring Applications
- OEM Applications
- Accessories for hydraulic reservoirs
- Mineral oil applications
Q & A
UNS1000-BN18 Level and Temperature Monitoring Q & A
+ What is the UNS1000-BN18 switch used for?
This device is designed to monitor both fluid level and temperature in one unit—so you can detect when liquid in a tank or reservoir reaches a given level and when the temperature reaches a set point.
+ What are the operating conditions (temperature, pressure, density)?
The specs show: operating temperature from –10 °C to +90 °C (14 °F to 194 °F). Operating pressure up to 4 bar (400 kPa = 58 psi). Minimum fluid density ~0.64 g/cm³; depth of immersion at density = 1 is 15 ± 2 mm.
+ What process connections are available?
Typical connections include: male thread G 1/2″ DIN ISO 228-1 (which equals T½) and M20 × 1.5 DIN 13.
+ What electrical connection and ratings does it support?
Electrical connection options include plug M12 × 1 (4-pin, PA), plug DIN EN 175301-803-A (former DIN 43650) 4-pin (PA), or cable gland (PA). Electrical values: max. 24 V AC/DC, max. 1 A, max. 15 VA or W.
+ What materials are the main parts made of?
Materials: Bulkhead union = brass; Contact tube = brass; Float stopper = bronze; Float = foamed NBR.
