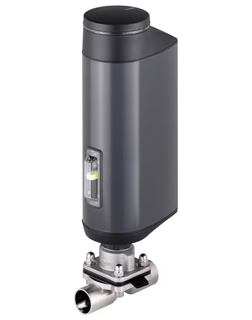

The externally controlled Type 3323 diaphragm valve consists of an electrically controlled linear actuator (open/close), a diaphragm and a 2/2-way valve body. The electric actuator with ball screw ensures usage under hygienic or aggressive ambient conditions. The flow-optimised valve body with minimum dead space enables high flow values and a wide range of possible applications. An optional energy storage device guarantees the safety position in the event of a power failure. The position is indicated by means of a 360° LED light ring. The actuator has a drive force adjustment to protect the diaphragm. A correspondingly high IP protection IP65/IP67 ensures adequate splash protection. The electromotive actuator of the diaphragm valve with ball screw moves to the desired end position at a particularly high speed of up to 4 mm/s. Moreover, the valve is also equipped with a mechanical position indicator and corresponding explosion protection ATEX/II 3G Ex ec IIC T4 Gc/II 3D Ex tc IIIC T135 °C Dc.
Description
Type 3323 - Electromotive 2/2-Way Diaphragm Valve Features:
- Safety position through energy storage
- Adjustable driving force
- Diagnostics functions and fieldbus connection
- Wetted surfaces in Ra ≤ 0.38 µm…1.6 µm (optionally electropolished)
- Available in nominal diameters DN 06…DN 100
Specifications
Type 3323 - Electromotive 2/2-Way Diaphragm Valve Specifications:
| Product Properties | |
| Material | |
| Forged steel valve body (VS) | Forged material 1.4435 according to BN2 DIN EN 10222 - 5, F316L according to ASTM A182/ A182M and 316 l according to ASME BPE |
| Stainless steel block material (VI etc.) | Bloc material 1.4435 according to BN2 and 316L according to ASME BPE table DT- 3 |
| Tube valve body (VP) | Stainless steel tube 1.4435-BN2 / UNS S31603 (316L) according to DIN 11866, ASTM A269 / A270, DIN EN 10217 - 7 / 10216 - 5 |
| Cast valve body (VG) | Investment cast material 1.4435 / 316 l |
| Plastic valve body (PW, PV, PP, PD) | PVC-C, PVC-U, PP, PVDF |
| Design | Diaphragm on/off valve |
| Diaphragm | EPDM (AD) , PTFE/EPDM (EA) , Advanced PTFE/EPDM (EU) , laminate of GYLON® and EPDM (ER) |
| Diaphragm size | 8…100, for plastic body 15…100 |
| Standard surface quality | |
| Forged steel valve body (VS) | Internally electrically polished: Ra ≤ 0.38 µm (NO17) (ASME BPE SF4/DIN HE4) (externally forged surface, electrically polished) Internally mechanically polished: Ra ≤ 0.5 µm (NO14) (ASME BPE SF1) (externally forged surface) |
| Stainless steel block material (VI etc.) | Internally electrically polished: Ra ≤ 0.38 μm (NO17) (ASME BPE SF4/DIN HE4) (externally electrically polished) Internally mechanically polished: Ra ≤ 0.5 µm (NO14) (ASME BPE SF1) (externally mechanically machined) |
| Tube valve body (VP) | Internally electrically polished: Ra ≤ 0.38 μm (NO17) (ASME BPE SF4/DIN HE4) (externally electrically polished) Internally glass-bead blasted: Ra ≤ 1.6 μm (NO05) (externally glass-bead blasted) |
| Cast valve body (VG) | Internally electrically polished: Ra ≤ 0.6 µm (NO16) (ASME BPE SF6) (externally cast surface, electrically polished) Internally mechanically polished: Ra ≤ 0.76 µm (NO06) (ASME BPE SF3/DIN H2) (externally cast surface) |
| Safety setting in case of power failure | With energy storage SAFEPOS energy-pack: open, closed or freely programmable Without energy storage SAFEPOS energy-pack: blocked in last position |
| Service life of energy storage SAFEPOS energy-pack | Up to 10 years (depending on operating conditions) |
| Performance data | |
| Closing time | AG2: 1.5…4.5 s AG3: 5.7…12.0 s (Depending on travel speed, stroke and operating conditions) |
| Travel speed | 4 mm/s (for AG2 actuator force 2500 N) 3 mm/s (for AG3 actuator force 11500 N) |
| Electrical data | |
| Operating voltage | 24 V DC ± 10 % (maximum residual ripple 10 %) |
| Operating current | AG2: maximum 3 A (at maximum load and including 1 A charging current of the optional energy storage SAFEPOS energy-pack). At minimum operating temperature additionally 2 A AG3: maximum 5 A (at maximum load and including charging current of the optional energy storage SAFEPOS energy-pack). At minimum operating temperature additionally 6 A |
| Protection class (DIN EN 61140) | III |
| Duty cycle | 100 % |
| Standby consumption | 1…5 W |
| Communication and control | |
| Digital input for position signal | 0…5 V (log „0“) 10…30 V (log „1“ |
| Fieldbus (digital) | Bürkert system bus (büS) CANopen (optional) EtherNet/IP, PROFINET, Modbus TCP (optional via integrated gateway) |
| Medium data | |
| Operating medium | Neutral gases and fluids, highly purified, sterile, aggressive or abrasive mediums |
| Medium temperature | |
| EPDM (AD) | - 10…+ 143 °C (steam sterilisation + 150 °C for 60 min) |
| PTFE/EPDM (EA) | - 10…+ 130 °C (steam sterilisation + 140 °C for 60 min) |
| Advanced PTFE/EPDM (EU) | - 5…+ 143 °C (steam sterilisation + 150 °C for 60 min) |
| Laminate of GYLON® and EPDM (ER) | - 5…+ 130 °C (steam sterilisation + 140 °C for 60 min) |
| Process/Port connection & communication | |
| Port connection For stainless steel body | |
| Welded connection | DIN EN ISO 1127 / ISO 4200 / DIN 11866 series B DIN 11850 - 2 / DIN 11866 series A / DIN EN 10357 series A ASME BPE / DIN 11866 series C |
| Clamp connection | DIN 32676 series A (DIN pipe) DIN 32676 series B (ISO pipe) ASME BPE |
| For plastic body | |
| Spigot connection | DN 15…DN 50 |
| True union | DN 15…DN 50 |
| Loose flange | DN 15…DN 65 |
| Fixed flange | DN 80…DN 100 |
| Electrical connection | |
| Actuator | Terminal strip with cable gland (only AG2), 2 x M20 or 2 x M12 circular plugs, 5-pin and 8-pin |
| Fieldbus gateway | 2 x M12 circular sockets, 4-pin (only with Industrial Ethernet) |
| Approvals and conformities | |
| Detergent resistance | According to Ecolab test method: R&D/P3-E No. 40 - 1 |
| Environment and installation | |
| Ambient temperature | - 10 °C…+ 65 °C 4.) (without energy storage SAFEPOS energy-pack) - 10 °C…+ 55 °C 4.) (with energy storage SAFEPOS energy-pack) |
| Degree of protection | IP65/IP67 (DIN EN 60529), NEMA 4X |
| Installation position | As required, preferably with actuator upright |
Applications
Type 3323 - Electromotive 2/2-Way Diaphragm Valve Applications:
- Laboratory automation – low-energy, precision dosing in small-scale systems
- Medical and analytical devices – compact control for liquid handling
- Semiconductor manufacturing – ultra-pure fluid control
- Hygienic applications – pharma and food processes where pneumatic control is not ideal
- Decentralized systems – mobile skids and systems without central compressed air
Q & A
Type 3323 - Electromotive 2/2-Way Diaphragm Valve Q & A:
+ What types of media can the Type 3323 valve handle?
It supports neutral, high-purity, sterile, contaminated, aggressive, or abrasive fluids and gases, including high-viscosity media.
+ How is the valve actuated?
The valve uses an electromotive linear actuator with electronic control, operable via binary signals or fieldbus systems.
+ What control options are available?
You can control it manually (2 buttons + 4 DIP switches) or electrically (binary signals or digital fieldbus).
+ How is valve position indicated?
It features a mechanical position indicator plus a 360° LED light ring that displays position/status.
+What are the actuation speed and closing times?
Actuation speed is up to 4 mm/s, with closing times ranging from ~1.5 s to 4.5 s depending on diaphragm size.
Downloads
Download Bürkert Type 3323 - Electromotive 2/2-Way Diaphragm Valve Datasheet
