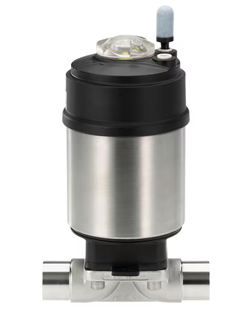

The externally controlled diaphragm valve Type 2103 consists of a pneumatically operated piston actuator, a diaphragm and a 2-way valve body. The proven and robust actuator with stainless steel housing ensures use in hygienic or aggressive ambient conditions. The flow-efficient valve bodies with little dead space enable high flow rates and a wide range of possible uses. The valve body and the diaphragm are available in all common materials and variants. The actuator has a compact, autoclavable design with a large stainless-steel housing and gap-free seals. The integration of automation units Type ELEMENT is possible in all configuration levels (can be retrofitted); a fieldbus interface can also be integrated. An explosion-proof ATEX/IECEx device variant is available. It is a compact, smooth-surfaced and highly integrated system consisting of a valve and an automation unit with integrated pilot air ducts (no intake of ambient air). The add-on body is optionally available in plastic or stainless steel (can be rotated 360°). The valve offers the degrees of protection IP65/67 and NEMA Type 4X and displays high chemical resistance.
Features
Type 2103 2-Way Diaphragm Valve with Pneumatic Stainless-Steel Actuator Features:
- Valve body and diaphragm are available in various materials and variants
- Wetted surfaces from Ra ≤ 0.38 µm...≤ 1.6 µm (optionally electropolished)
- Available in all common connection sizes and variants
Specifications
Type 2103 2-Way Diaphragm Valve with Pneumatic Stainless-Steel Actuator Specifications:
| Product Properties | |
| Material | |
| Forged steel valve body (VS) | Forged material 1.4435 according to BN2 DIN EN 10222 - 5, F316L according to ASTM A182/A182M and 316L according to ASME BPE |
| Tube valve body (VP) | Stainless steel tube 1.4435-BN2 / UNS S31603 (316L) according to DIN 11866, ASTM A269 / A270, DIN EN 10217 - 7 / 10216 - 5 |
| Cast valve body (VG) | Investment cast material 1.4435 / 316 l |
| Plastic valve body (PW, PV, PP, PD) | PVC-C, PVC-U, PP, PVDF |
| Diaphragm | EPDM (AD), PTFE/EPDM, Advanced PTFE/EPDM (EU), laminate of GYLON® and EPDM (ER) |
| Actuator | DN 08…65, PPS DN 65…100, stainless steel 1.4308 |
| Actuator cover | DN 08…65, stainless steel 1.4561 (316Ti) DN 65…100, stainless steel 1.4308 |
| Diaphragm size | 8…100, for plastic body 15…100 |
| Standard surface quality | |
| Forged steel valve body (VS) | Internally electrically polished: Ra ≤ 0.38 µm (NO17) (ASME BPE SF4 / DIN HE4) (externally forged surface, electrically polished) Internally mechanically polished: Ra ≤ 0.5 µm (NO14) 1.) (ASME BPE SF (externally forged surface) |
| Tube valve body (VP) | Internally electrically polished: Ra ≤ 0.38 μm (NO17) (ASME BPE SF4 / DIN HE4) Internally glass bead blasted: Ra ≤ 1.6 μm (NO05) (externally glass bead blasted: Ra ≤ 1.6 μm (NO01)) |
| Cast valve body (VG) | Internally electrically polished: Ra ≤ 0.6 µm (NO16) (ASME BPE SF6) (externally cast surface, electrically polished) Internally mechanically polished: Ra ≤ 0.76 µm (NO06) (ASME BPE SF3 / DIN H2) (externally cast surface) |
| Performance data | |
| Maximum pilot pressure (SF A) | 10 bar 7 bar for actuator size 130, 225 |
| Pilot air port | Push-in connector for outer diameter, Ø 6 mm or ¼" (standard), thread G ⅛" |
| Medium data | |
| Process medium | Neutral gases and fluids, highly purified, sterile, aggressive or abrasive medium |
| Medium temperature | |
| EPDM (AD) | - 10…+ 143 °C (steam sterilisation + 150 °C for 60 min) |
| PTFE/EPDM (EA) | - 10…+ 130 °C (steam sterilisation + 140 °C for 60 min) |
| Advanced PTFE/EPDM (EU) | - 5…+ 143 °C (steam sterilisation + 150 °C for 60 min) |
| Laminate of GYLON® and EPDM (ER) | - 5…+ 130 °C (steam sterilisation + 140 °C for 60 min) |
| Control medium | Neutral gases, air |
| Product connections | |
| Port connection | |
| Nominal diameter | DN 06…DN 100 (⅛"…4") |
| Stainless steel body | |
| Welded connection | DIN EN ISO 1127 / ISO 4200 / DIN 11866 series B DIN 11850 - 2 / DIN 11866 series A / DIN EN 10357 series A ASME BPE / DIN 11866 series C |
| Clamp connection | DIN 32676 series A (DIN pipe) DIN 32676 series B (ISO pipe) ASME BPE |
| Plastic body | |
| Spigot connection | DN 15…DN 50 |
| True union | DN 15…DN 50 |
| Loose flange | DN 15…DN 65 |
| Fixed flange | DN 80…DN 100 |
Applications
Type 2103 2-Way Diaphragm Valve with Pneumatic Stainless-Steel Actuator Applications:
- Biopharmaceuticals – hygienic processing of sterile media
- Food & beverage – hygienic shut-off in dairy, brewing, or bottling lines
- Water purification – membrane filtration systems
- Cosmetics – clean processing of lotions or serums
- Clean-in-Place (CIP) systems – control of aggressive cleaning fluids
Q & A
Type 2103 2-Way Diaphragm Valve with Pneumatic Stainless-Steel Actuator Q & A:
