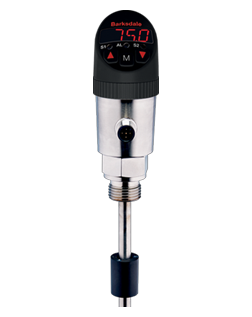

Barksdale's BLS3000 Electronic Dual Level Switches combine three discrete components (dual level switch, pressure transducer, and digital level gauge) into one compact package. The BLS300 is available in three configurations: 1) dual switch points, 2) dual switch points with analog output (4-20 mA or 0-10 V), or 3) single switch with analog output. Setpoints and deadband are easily adjusted using a user-friendly menu where hysteresis can be set up to 125% of its measuring range. Analog transducer outputs are scalable from 25% to 100% of the full adjustable range.
The BLS3000 offers an easy to read 4-digit 14-segment LED angled display which is rotatable to 320°. The BLS3000 is an ideal solution for applications requiring precision level control, flexibility and extremely long life.
Features
BLS3000 Electronic Dual Level Switch Features
- Signal resolution: 1/5" (5 mm)
- Redundant measurement system ensures reliable output
- Total length (L0): 9.8"-39.4" (250 mm-1000 mm)
- One or two switch points
- Analog output: 4 - 20 mA or 0 - 10 V
- Rotatable 320° display & electrical connection
- Easy menu navigation
Specifications
BLS3000 Electronic Dual Level Switch Specifications
| Specification | Details |
|---|---|
| Sensor Element | Reed switch |
| Materials | |
| Wetted Parts | |
| Stem (Fitting, Tube) | Stainless steel 316Ti |
| Float | NBR (BUNA-N) foam |
| Seals | FKM, EPDM, or NBR (BUNA-N) |
| Electronic Housing | Stainless steel 316Ti, PBT, elastomer |
| Operating Elements | 3 easy-response push-buttons |
| Enclosure Rating | Type 1 / Type 4X (IP65) / Type 6 (IP67) |
| Protection Class | III |
| Electrical Connection | Plug M12 × 1, 4-pin / 5-pin / 8-pin (depending on output selection) |
| Process Connection | See Product Configurator for process connection options (page 2) |
| Float BN17 | |
| Density Medium | min. 0.02 lb/in³ (0.60 g/cm³) |
| Depth of Immersion | 0.59″ ± 0.07″ (15 ± 2 mm) in water / 0.74″ ± 0.07″ (19 ± 2 mm) in oil (0.75 SG) |
| Float Dimensions | Ø 0.70″ × 0.98″ high (Ø 17.8 mm × 25 mm) |
| Dimensions (Enclosure) | 1.6 Ø × 4.5 inches (41 × 110 mm); for ½″ NPT (without M12 connector or probe). Contact factory for other sizes. |
| Weight | Approx. 0.77 lb (350 g) for G ½″ size and 250 mm L₀ (consult factory for exact weight). |
| Total Length (L₀) | 9.8″ (250 mm), 14.6″ (370 mm), 16.1″ (410 mm); others on request up to 39.4″ (1000 mm). |
| Accuracy | ± 1 digit (without turbulence) including temperature influence and repeatability |
| Resolution | 1/5″ (5 mm) |
| Max. Pressure | 43.5 psi (3 bar) |
| Temperature Range | |
| Medium | –13 °F to +176 °F (–25 °C to +80 °C) |
| Ambient / Operating | –4 °F to +158 °F (–20 °C to +70 °C) |
| Storage | –22 °F to +176 °F (–30 °C to +80 °C) |
| Power Supply | 15 to 28 V DC (reversed polarity protected, SELV/PELV) |
| Power Consumption | Approx. 50 mA (without load); Approx. 80 mA (Output Code 6) |
| Digital Display | 4-digit 14-segment LED display, red, digit height 0.35″ (9 mm) |
| Error Display | LED red and alphanumeric display |
| Analog Output | |
| Current Output | 4-20 mA |
| Load | max. RI = (Ub-12V) / 20 mA RI = 600 Ohm at Ub = 24 V DC |
| Scanning Rate | 2 ms |
| Voltage Output | 0 to 10 V DC |
| Rating | max 10 mA |
| Adjustment Range | 25 % to 100 % f.s. |
| Transistor Switching Outputs | |
| Switching Function | Normally open / normally closed; standard / window mode and adjustable functions |
| Switching Output | PNP |
| Adjustment Range (for switching point and hysteresis) | 0 % to 125 % f.s. |
| Switching Frequency | Max. 100 Hz |
| Load | Max. 500 mA (short-circuit proof) |
| Delay | 0.0 s to 50 s adjustable |
| Status Display(s) | LED(s) red |
| EMI Compliance | EN 61000-4-2 (ESD 4 kV CD / 8 kV AD); EN 61000-4-3 (HF 10 V/m); EN 61000-4-4 (Burst 2 kV); EN 61000-4-5 (Surge 1/2 kV); EN 61000-4-6 (HF conducted 10 V) |
| Shock Resistance | DIN EN 60028-2-27 – 50 g (11 ms) |
| Vibration Resistance | DIN EN 60028-2-26 – 20 g (10 … 2000 Hz) |
| Approvals | cULus¹ |
Applications
BLS3000 Electronic Dual Level Switch Applications
Level control for:
- PFAS Treatment Systems
- Desalination Systems
- Reverse Osmosis Systems
- Distillation Systems
- Filtration Systems
- Mobile & Containerized Packaged Systems
- Blower & Compressor Packaged Systems
- Hydraulics
- Lubrication systems
- Cooling
Q & A
BLS3000 Electronic Dual Level Switch Q & A
Applications include PFAS treatment systems, desalination, reverse osmosis, distillation, filtration, mobile and containerized packaged systems, hydraulics, lubrication systems, and cooling systems.
