The Oriental Motor MRCU Integrated Robot Controller & Drivers simplifies robotic system design by combining the robot controller and motor drivers into a single compact platform. Instead of configuring separate motion controllers and driver electronics, the MRCU architecture centralizes motion control, communication, and motor management in one streamlined solution.
Designed for industrial robotic applications such as pick-and-place systems, assembly automation, inspection equipment, and material handling, the MRCU reduces wiring complexity and setup time while improving system reliability.
With integrated control for multiple robot axes and compatibility with EtherNet/IP™ industrial networks, the system allows engineers to deploy robots faster while maintaining precise, coordinated motion.
Valin supports manufacturers and system integrators with application expertise, configuration support, and motion automation solutions to help implement the MRCU platform in demanding automation environments.
Features
Key Features & Advantages
Controller and Drivers in a Single Package
The robot controller MRC01 and AZ Series mini driver (3 to 8 axes) are in a single package. This eliminates the need for wiring between the controller and drivers and between drivers. It is also compact, which contributes to space savings.
- Program the robot using the programming software MRC Studio (download for free)
- Control via EtherNet/IP or I/O
- Power Supply: 24 VDC/48 VDC
Easy Setup Quickly
Small robots OVR can help reduce setup time because dimensional data, such as arm length, is already registered.
Say Goodbye to Ladder Logic! Operation Programming with Item Selection
Program creation uses a simple command selection format. Programs can be created intuitively, without requiring specialized knowledge such as ladder diagrams. The system supports a range of advanced motion control operations, including P-to-P, linear interpolation, circular interpolation, and arc motion, among others. Operating data is executed directly from a host controller via EtherNet/IP

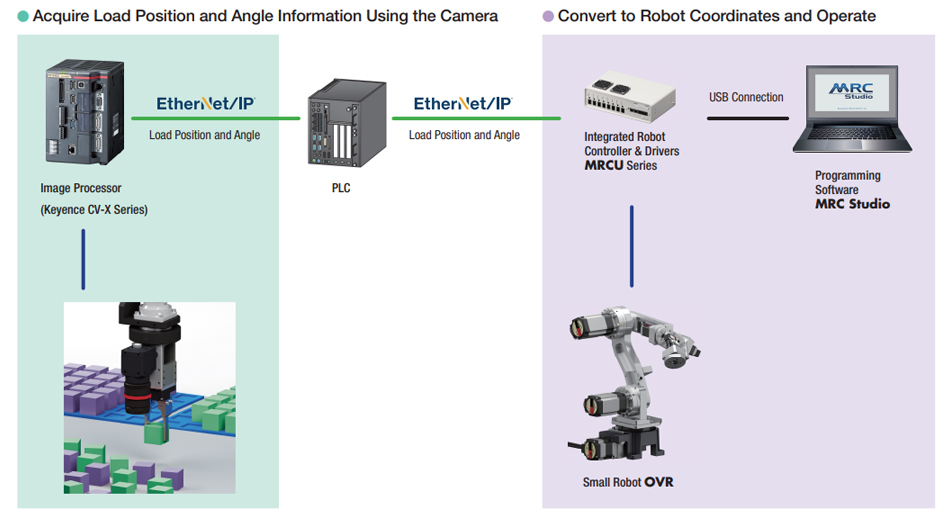

Configuration of a Robot Vision System Using 2D Cameras
The robot controller is equipped with useful functions for operating the robot using load position and angle information acquired by the camera.
In order to integrate the 2D camera, MRC Studio is used to perform the calibration* in advance. The settings can be easily configured by simply following the on-screen instructions while looking at the illustrations, allowing for a reduction in the work hours necessary for correction.
*Up to two motors
Performance
Performance & Motion Control Capabilities
Precise Motion Synchronization
The MRCU platform coordinates multiple motors with high-speed communication and accurate timing control, enabling smooth robotic motion and consistent positioning.
Optimized for Robotic Kinematics
Built-in motion control algorithms support robotic movement patterns, helping maintain smooth trajectories and repeatable accuracy.
Scalable Motion Architecture
The system is designed to support various robot configurations and motor types, giving engineers flexibility when designing robotic workcells.
High-Speed Industrial Communication
Real-time industrial Ethernet communication allows the MRCU to exchange data quickly with PLCs, HMIs, and supervisory systems.
Reliable Operation in Automation Environments
Engineered for industrial automation, the controller delivers stable performance in high-duty manufacturing systems.
Applications
Applications & Industries
The Oriental Motor MRCU Integrated Robot Controller & Drivers is used in automation systems where coordinated robotic motion and simplified control architecture are critical.
Common Applications
- Robotic pick-and-place systems
- Automated assembly lines
- Inspection and testing equipment
- Material handling automation
- Packaging machinery
- Semiconductor handling systems
Industries Served
- Semiconductor manufacturing
- Electronics assembly
- Medical device manufacturing
- Packaging and processing
- Automotive component production
- Precision manufacturing
By combining control and drive technology into a single system, the MRCU platform helps manufacturers build robotic automation solutions that are easier to deploy and maintain.
Integration
Integration & Support
Faster Robot System Integration
Because the MRCU consolidates multiple control components into one platform, engineers can reduce development time and bring robotic automation systems online faster.
Simplified System Design
Machine builders no longer need to select separate robot controllers and drivers, which streamlines system design and reduces compatibility concerns.
Expert Motion Automation Support
Valin’s motion and automation specialists can assist with:
- Robot motion architecture design
- Controller configuration and setup
- Network communication integration
- Motion tuning and system optimization
Complete Motion Solutions
In addition to the Oriental Motor MRCU Integrated Robot Controller & Drivers, Valin offers complementary automation products including motors, actuators, sensors, and control systems to help customers build complete robotic solutions.
