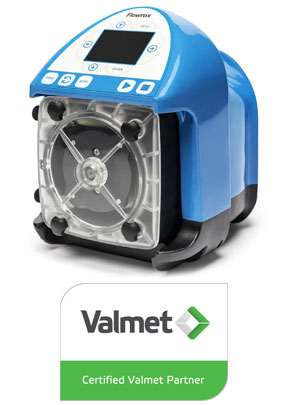

Flowrox™ FXM Metering Pumps from Neles

To optimize metering performance, they offer FXM2 and FXM3 series pumps with improved performance. Compared to the previous generation, FXM pumps have expanded logic programming and functionality and also higher capacity. Maximum flow of the FXM2 model reaches up to 176 l/hr (46.5 GPH) and FXM3 up to 840 l/hr (221.9 GPH). Working pressure of FXM2 goes up to 8.6 bar (125 psi) and FXM3 up to 4.5 bar (65 psi). They can also withstand fluid temperature up to 54° C (130° F). Combined with accurate metering and a selection of different tube materials, the FXM pumps are an ultimate choice for chemical dosing applications.

Accurate and Reliable Operation

Positive displacement of the tube bore with zero slip provides same output volume on every cycle. There is no variation due to the discharge pressure condition. The compression point of the tube acts as self-cleaning check valve without clogging risk providing clear flow path with no possibility for vapour lock.

Flowrox™ FXM Metering Pumps Benefits:

• Accurate and safe metering
• Self-priming (up to 90 % of full vacuum)
• Only the tube and tube fittings are in contact with the process medium
• Serviceable rotor construction for ease of maintenance

Flowrox™ FXM Metering Pumps Features

• Versatile system connectivity, diverse programming options and controllability
• Fully reversible operation
• Dry run capability
• Digital touchpad adjustment – precise and reliable
• Wide selection of tube materials
• Tube failure detection
• NEMA 4X / IP66 enclosure
• Available display languages: English, Finnish, French, German, Russian and Spanish

Flowrox™ FXM Metering Pumps Technical Improvements:

• New motor and control circuit: the pump runs accurately and smoothly also at lowest speed
• Serviceable rotor construction: can be disassembled for maintenance
• Field switchable power cord: easy to disconnect, no need to open pump casing
• Operation adjustment through digital touchpad: precise and reliable performance
• Modern digital technology for highest reliability
• Contactless, external leak sensor for tube failure detection: the medium does not damage the sensor in case of a leak.
• Bigger display: easier to read, fits more information
• Pump has a handle: easy to carry

Flowrox™ FXM Metering Pumps Applications:

• Waste water/water treatment chemicals
• Reagents for mining processes
• Pulp & paper chemical metering
• Various industrial chemical dosing duties

Flowrox™ FXM Metering Pumps Specifications:
