The general purpose reflective ultrasonic multi-function level transmitter provides continuous level measurement up to 9.8’ (3m) with a 4-20 mA analog signal output and four relays, and is configured via their WebCal software. The non-contact liquid level sensor features their proprietary Reflective Technology™ that delivers reliable level measurement in condensing environments. Each relay can be configured for alarm, automatic fill or empty functions. Select this sensor for small tanks with non-foaming and mildly vaporous media such as chemicals, water, wastewater and oil. Typical applications include day tank, IBC or drum, cooling tower, skid or machine, process tank and waste sumps.

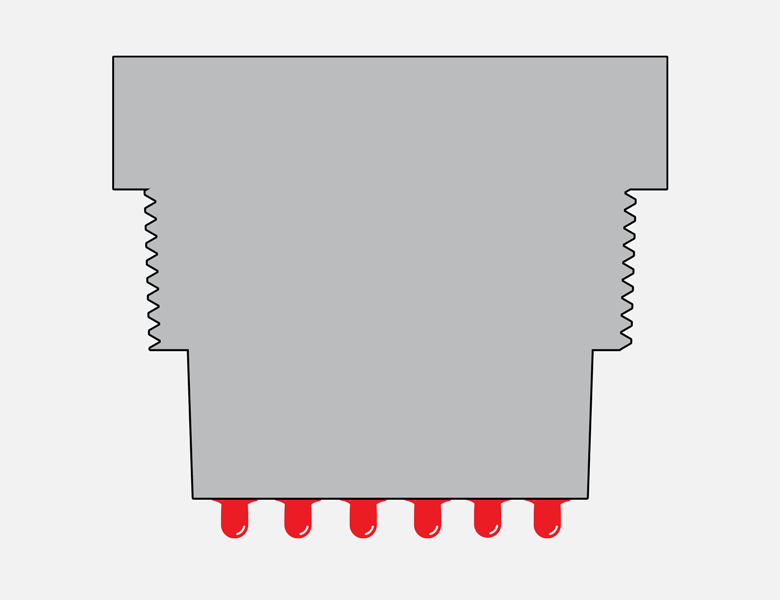

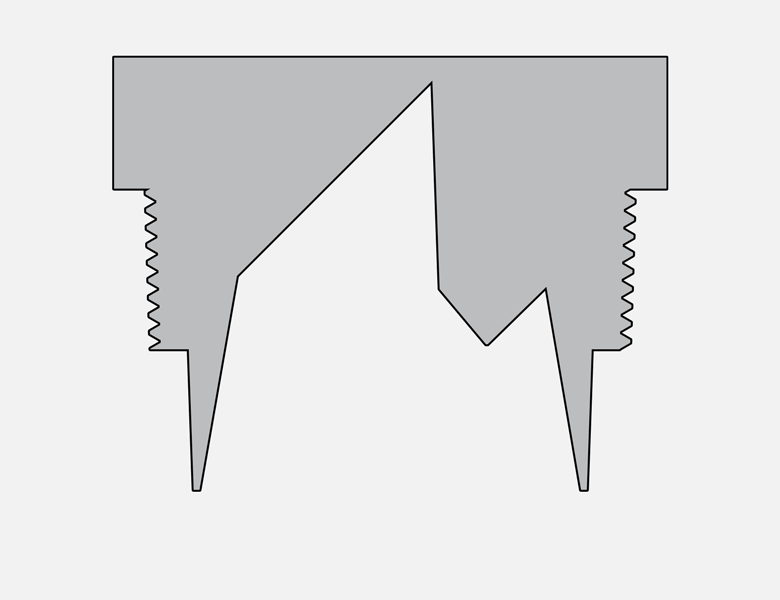

Condensation is the most common variable in liquid level applications. Condensation attenuates the acoustic signal of ultrasonic sensors with horizontal transducers, weakening their signal strength and signal to noise ratio by up to 50%, and substantially reducing their measurement reliability. At the core of Reflective Technology™ is a simple fact. Unlike flat horizontal surfaces, significant water droplets cannot adhere to smooth vertical surfaces. By orienting the transducer vertically, condensation runs off the transducer and does not affect sensor performance. The unimpeded transmit and receive signals are redirected to and from the liquid off a 45º reflector, delivering reliable level measurement. Thanks gravity.
| Reflective Transducer | Horizontal Transducer |
 |  |
| Reliable Measurement | Signal Attenuation |
Features

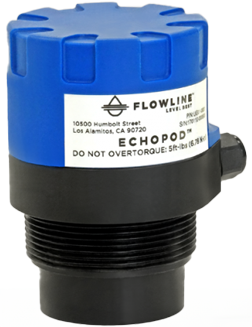

EchoPod® UG01 & UG03 Reflective Ultrasonic Multi-Function Liquid Level Sensor Transmitter Features:
- Offered in 1.5m (4.9’) and 3m (9.8’) measurement ranges
- Fail-safe diagnostics with selectable relay and signal outputs
- Narrow 2” (5cm) beam width for applications with limited space
- Corrosion resistant PVDF transducer and compact PP enclosure
- Short 1.5” (3.8cm) dead band maximizes tank filling capacity
- Automatic temperature compensation from -40º to 80º C.
- Four programmable relays with embedded level control logic
- 1 pump or valve with 3 alarms
- 2 pumps lead-lag with 2 alarms
- 2 pumps duplexing with 2 alarms
- 4 independent switch point alarms
Specifications
EchoPod® UG01 & UG03 Reflective Ultrasonic Multi-Function Liquid Level Sensor Transmitter Specifications:
| Specification | Details |
|---|---|
| Range | UG01: 1.5″ to 4.9′ (3.8 cm to 1.5 m); UG03: 4″ to 9.8′ (10.1 cm to 3 m) |
| Accuracy | UG01: 0.125″ (3 mm); UG03: ± 0.2% of range |
| Resolution | UG01: 0.019″ (0.5 mm); UG03: 0.039″ (1 mm) |
| Dead band | UG01: 1.5″ (3.8 cm); UG03: 4″ (10.1 cm) |
| Beam width | 2″ (5 cm) |
| Configuration | WebCal® PC Windows® USB® 2.0 |
| Memory | Non-volatile |
| Supply voltage | 14–28 VDC |
| Maximum consumption | 0.5 W |
| Loop resistance | 500 ohms @ 24 VDC |
| Signal output | 4–20 mA, two-wire |
| Signal invert | 4–20 mA or 20–4 mA |
| Signal fail-safe | 4 mA, 20 mA, 21 mA, 22 mA, hold last |
| Contact type | (4) SPST relays |
| Contact rating | 60 VA, 1 A maximum |
| Contact fail-safe | Open, closed, hold last |
| Contact hysteresis | Selectable |
| Process temperature | F: −40° to 176°; C: −40° to 80° |
| Temperature compensation | Automatic |
| Ambient temperature | F: −31° to 140°; C: −35° to 60° |
| Pressure | 30 psi (2 bar) |
| Enclosure rating | Type 6P (IP68) |
| Enclosure material | Polypropylene |
| Transducer type | Reflective |
| Transducer material | Polyvinylidene fluoride |
| Cable jacket material | Polyurethane |
| Cable type | 9-conductor, shielded |
| Cable length | 48″ (1.2 m) |
| Process mount | -0001: 2″ NPT; -0011: 2″ G |
| Mount gasket | -0001: N/A; -0011: Viton® |
| Classification | General purpose |
| Approval | UL 61010-1 |
| Compliance | CE, RoHS |
Video
EchoPod® UG01 & UG03 Reflective Ultrasonic Multi-Function Liquid Level Sensor Transmitter Video:
Q&A
EchoPod® UG01 & UG03 Reflective Ultrasonic Multi-Function Liquid Level Sensor Transmitter Q & A
- UG01: Measures up to 1.5 meters (4.9 feet).
- UG03: Measures up to 3 meters (9.8 feet).
- Both models provide continuous level measurement with a 4–20 mA analog signal output and four programmable relays.
These sensors are suitable for non-foaming and mildly vaporous media such as:
- Chemicals
- Water
- Wastewater
- Oil
- Other general-purpose applications
They are ideal for small tanks, IBCs, drums, cooling towers, skids, machines, process tanks, and waste sumps.
Compatible accessories include:
- Indicators & Controllers: Such as the LI55-1001 GP level sensor controller and the LI23-1001 GP level sensor indicator.
- Installation Fittings & Adapters: Various fittings and adapters to facilitate installation.
- Level Switches & Leak Detection: Additional components for enhanced functionality.
The EchoPod UG01 & UG03 offer:
- 4–20 mA analog signal output
- Four programmable relays with embedded level control logic, configurable for:
- 1 pump or valve with 3 alarms
- 2 pumps lead-lag with 2 alarms
- 2 pumps duplexing with 2 alarms
- 4 independent switch point alarms
