The BLS Series combines an efficient, compact, and lightweight brushless motor with a slim, universal driver. This series meets simple variable speed requirements where space is limited. With compatibility across many types of gearheads, the BLS Series motor can easily replace AC motors that use the same gearhead.
- Simple, compact, and cost-effective
- Standard or RS-485 Communication Driver types
- IP65 or IP40
- Ideal for applications like conveyors and agitators
- Reduce electricity costs
- Standard or long-life type gearheads available: parallel shaft, hollow shaft flat gear or round shaft (no gear)
Features
BLS Series Brushless Motors Features:
- Smaller and Lighter Motor
A 90 W BLS Series brushless DC geared motor is 78 mm shorter than an equivalent 90 W AC induction motor. The motor is also 1.8 kg lighter.
- Reduced Power Consumption
A BLS Series brushless DC motor can reduce electricity costs by up to 20% in 1 day and recover the upgrade cost in 1 year.
- Gearhead Flexibility
A BLS Series motor is compatible with various gearhead options including gearheads for AC motors, making it easier to upgrade from AC motors to brushless motors.

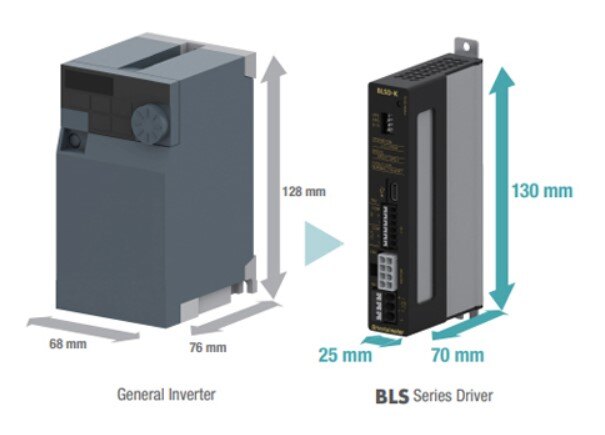

- Slimmer Driver
The volume of the BLS Series driver is reduced by 65% compared to VFDs/inverters. More drivers can fit into the same space.
- Universal Driver with Closed-Loop Speed Regulation
For applications like conveyors and agitators, built-in closed-loop speed regulation keeps the speed constant even with load fluctuations.
Specifications
BLS Series Brushless Motors Specifications:
| Item | Specifications |
| Speed Control Range | 25 W, 40 W, 90 W: 100~2000 r/min 30 W, 60 W, 120 W: 100~4000 r/min The factory setting of rotational speed is as follows: 1500 r/min (when “Function setting switch: SPD (SPEED)” is “SPD0”) 1800 r/min (when “Function setting switch: SPD (SPEED)” is “SPD1” |
| Speed Setting Method | Support Software MEXE02 |
| Acceleration/Deceleration Time: Control Range | 100~30000 ms (Factory setting: 1000 ms) |
| Acceleration/Deceleration Time: Setting Method | Support Software MEXE02 |
| Input Signals | 2-points input Photocoupler input mode 24 VDC (−15~+20%) |
| Output Signals | 2-points output Photocoupler and open-collector output 4.5~30 VDC, 10 mA current max. |
| Information | When information is generated, INFO output will turn ON and PWR/SYS LED will flash blue. The motor will continue to run. |
| Alarm | When an alarm is activated, ALM-B output will turn OFF and the motor will stop. At the same time, PWR/SYS LED will flash red. |
| Maximum Extension Distance | Motor and driver distance: 10.5 m (when a connection cable sold separately is used) |
| Time Rating | Continuous |
Q & A
BLS Series Brushless Motor Q & A
Benefits include a compact and lightweight design, energy savings (reducing electricity costs by up to 20% compared to AC motors with inverters), and compatibility with various gearheads, making them suitable for applications like conveyors and agitators.
The BLS Series offers motors with output powers ranging from 25 W (1/30 HP) to 120 W (1/6 HP).
Compatible gear options include parallel shaft, hollow shaft flat, and round shaft (no gear).
These motors operate with a 24 VDC power supply.
BLS motors can last up to 40,000 hours under optimal conditions.
