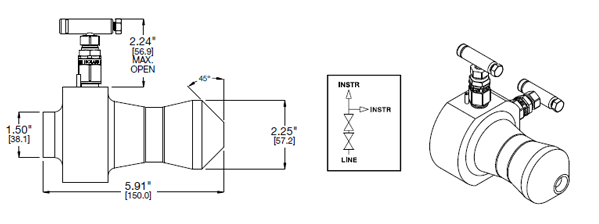

Weldolet Double Block Gauge Valves Materials of Construction:
| PART DESCRIPTION | CARBON STEEL | 316 SS |
| Body | ASTM A350-LF2 CS | ASTM A479-316 SS |
| Bonnet | ASTM A479-316 SS | ASTM A479-316 SS |
| Stem | ASTM A479-316 SS | ASTM A479-316 SS |
| Seal Retainer | ASTM A479-316 SS | ASTM A479-316 SS |
| Handle Assembly | ASTM A108 CS | ASTM A581 18-8 300 SS |
- PGI Carbon Steel Products are plated for corrosion prevention.
- PGI 316 SS Products meet the requirements of NACE MR0175/ISO 15156-36.
- 100% Pressure Tested
Weldolet Double Block Gauge Valves Max Cv Ratings:
| ORIFICE SIZE | BODY STYLE Straight |
| .187" | .53 |
Approximate Valve Weight: 8.00 lbs (3.62 kg)
Download Parker Instrument Valve Datasheet
