High-Performance Shutoff for Severe Industrial Applications

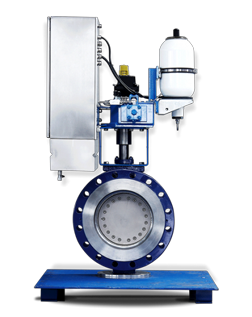

The TRI-CON Triple Offset Metal-Seated Butterfly Valve from ZWICK Armaturen is engineered for tight shutoff, long service life, and dependable performance in extreme operating conditions. Designed with a precision triple-offset geometry, these valves minimize friction between the sealing surfaces, significantly reducing wear while ensuring reliable sealing even at high pressures and temperatures.
Industries that handle steam, hydrocarbons, corrosive media, or high-temperature processes rely on TRI-CON valves for bubble-tight isolation, minimal maintenance, and superior durability. With robust metal seating technology and advanced manufacturing tolerances, these valves deliver consistent performance in critical process control applications.
Whether installed in power plants, refineries, chemical facilities, or industrial processing systems, TRI-CON valves provide operators with exceptional reliability, operational safety, and long-term cost efficiency.
Benefits
Key Benefits
- Bubble-tight shutoff with metal-to-metal sealing
- Reduced seat wear thanks to friction-free triple-offset design
- Excellent performance in high temperatures and pressures
- Low operating torque for easier actuation
- Extended lifecycle with reduced maintenance requirements
- Advanced Valve Design for Severe Service Environments: the TRI-CON valve combines precision engineering and advanced materials to provide high reliability in challenging industrial conditions.
Features
Design Features
- Advanced Valve Design for Severe Service Environments: The TRI-CON valve combines precision engineering and advanced materials to provide high reliability in challenging industrial conditions.
Triple Offset Geometry: The triple offset design consists of:
- First Offset – Shaft positioned behind the seat plane to reduce friction.
- Second Offset – Shaft offset from the pipeline centerline for smooth rotation.
- Third Offset – A conical seat geometry that enables zero-friction sealing during operation.
This configuration ensures non-contact operation during opening and closing, dramatically improving valve longevity.- Metal Seated Sealing System: The TRI-CON valve uses a high-precision laminated metal seal designed to maintain sealing integrity even under thermal expansion and pressure fluctuations.
- Rugged Construction: Available in a variety of materials and configurations, TRI-CON valves are suitable for aggressive media, high temperature steam, and critical shutoff applications.
Key design characteristics include:- Bi-directional sealing capability
- Fire-safe construction options
- Fugitive emission control designs
- High cycle durability
- Compatibility with electric, pneumatic, or hydraulic actuators
Applications
Applications & Industries
Because of their durability and tight shutoff performance, TRI-CON valves are widely used in industries that require dependable isolation under extreme conditions.
Common Applications
- High-temperature steam isolation
- Process gas shutoff
- Hydrocarbon processing
- Thermal oil systems
- Cryogenic service
- Pressure isolation in pipelines
Industries Served
- Power Generation
- Oil & Gas Refining
- Petrochemical Processing
- Chemical Manufacturing
- Industrial Energy Systems
- District Heating Networks
- Pulp & Paper Processing
These valves are particularly valuable in applications where valve leakage could create safety hazards, energy loss, or environmental compliance issues.
Q & A
TRI-CON Triple Offset Metal-Seated Butterfly Valves Q & A
A triple offset butterfly valve uses three geometric offsets in its design to eliminate friction between the valve disc and seat during operation. This design prevents wear on the sealing surfaces and creates a tight metal-to-metal seal when the valve closes. The triple offset geometry ensures longer service life and reliable shutoff in high-temperature and high-pressure industrial applications.
Metal-seated butterfly valves offer several advantages over soft-seated designs:
- Higher temperature resistance
- Greater pressure tolerance
- Improved durability in abrasive or corrosive environments
- Longer service life in severe industrial applications
Because of these characteristics, metal-seated valves are commonly used in steam systems, oil and gas processing, and power generation.
TRI-CON valves are commonly used in industries where high reliability and tight shutoff are critical, including:
- Power generation
- Oil and gas refining
- Chemical processing
- Petrochemical production
- Industrial energy systems
These industries often operate with high temperatures, high pressures, or aggressive process media, making triple offset valves an ideal choice.
Yes. TRI-CON valves can be paired with electric, pneumatic, or hydraulic actuators, making them suitable for both manual operation and automated process control systems. Automation allows operators to integrate these valves into modern industrial control systems for remote monitoring and operation.
Triple offset valves reduce mechanical wear by ensuring that the disc does not rub against the seat during opening or closing. Contact occurs only at the final moment of sealing. This greatly reduces friction and seat damage, which extends valve life and lowers maintenance costs.
