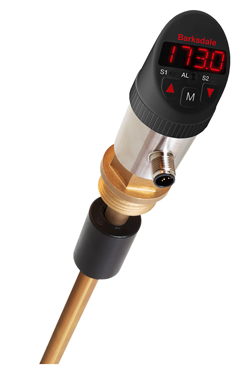

The electronic dual level switch is capable of measuring media with a density < 0.6g/cm³. The BLS2000 is equipped with a fitting and tube made of brass, making it an economic solution.
The resolution is 8 or 12 mm. With regard to the total length (L0) available, lengths between 250 and 3000 mm can be ordered.
Features
BLS2000 Electronic Dual Level Switch with Brass Tube Features:
- Resolution: 8 or 12 mm
- Redundant measurement system
- Direct measurement
- Capable of measuring media of density < 0.6g/cm³
- Total length (L0): 250 - 3000 mm
- Max. 2 switch points
- Analogue output 4 - 20 mA or 0 - 10 V
- Rotatable 320° display & electrical connection
- Menu navigation refers to VDMA standard
Specifications
BLS2000 Electronic Dual Level Switch with Brass Tube Specifications:
| Specification | Details |
|---|---|
| Sensor Element | Reed switch |
| Stem (Fitting, Tube) | Brass |
| Float | NBR foam |
| Seals | FKM, EPDM or NBR |
| Electronics Housing | Stainless steel, mat. no. VA2A, PA / PC |
| Operating Elements | 3 easy-response pushbuttons |
| Protection System | IP65 / IP67 |
| Protection Class | III |
| Electrical Connection | Plug M12 x 1 mm, 4-pin / 5-pin (depending on output code) |
| Float BN30: Density Medium | min. 0.60 g/cm³ |
| Float BN30: Depth of Immersion | 20 ± 2 mm at density 1, Ø30 mm, height 44 mm |
| Dimension | 110 × 41 mm (without plug connector and probe) |
| Weight | approx. 350 g (without probe) |
| Total Length (L0) | 250 mm, 370 mm, 410 mm, 1000 mm (others on request) |
| Repeatability | ± 1 digit (without turbulence), including temperature influence |
| Resolution | 8 or 12 mm |
| Max. Pressure | 15 bar |
| Temperature Range – Medium | -25 °C to +80 °C |
| Temperature Range – Ambient | -20 °C to +70 °C |
| Temperature Range – Storage | -30 °C to +80 °C |
| Power Supply | 15–32 V DC, reversed polarity protected (SELV, PELV) |
| Digital Display | 4-digit, 14-segment LED display, red, digit height 9 mm |
| Error Display | LED red and alphanumeric display |
| Power Consumption | approx. 50 mA (without load) |
| Analog Output – Current | 4–20 mA |
| Load (Current Output) | max. RI = (Ub - 12 V) / 20 mA; RI = 600 Ω at Ub = 24 V DC |
| Scanning Rate | 2 ms |
| Voltage Output | 0...10 V DC |
| Ratings | max. 10 mA |
| Adjustment Range | 25 %–100 % f.s. |
| Units Distance | %, mm, cm, m, inch, feet |
| Units Volume | liter, m³, gallon |
| Transistor switchting outputs / IO-Link | |
| Switching Function | Normally open/normally closed, standard / window mode and diagnosis function adjustable |
| Adjustment Range for Switching Point & Hysteresis | 0 %...125 % f.s. |
| Switching Frequency | max. 100 Hz |
| Load | max. 500 mA, short-circuit proof |
| Delay | 0.0 s ... 50 s adjustable |
| Status Display | LED(s) red |
| Interfaces | |
| Communication Interface | IO-Link |
| Transmission Type | COM2 (38.4 kBaud) |
| IO-Link Revision | 1.1 |
| SDCI Standard | IEC 61131-9 |
| Profiles | Smart Sensor |
| SIO Mode | Yes |
| Device Type | Class A |
| Process Data Variable | 1 |
| Binary Data Channel | 2 |
| Min. Process Cycle Time | 2.5 |
| Device ID | 0x051 … |
| EMV – EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EMV – EN 61000-4-3 HF radiated | 10 V/m |
| EMV – EN 61000-4-4 Burst | 2 kV |
| EMV – EN 61000-4-5 Surge | 1/2 kV |
| EMV – EN 61000-4-6 HF conducted | 10 V |
| Shock Resistance: DIN EN 60028-2-27 | 50 g (11 ms) |
| Vibration Resistance: DIN EN 60028-2-26 | 20 g (10–2000 Hz) |
| Approvals | On request |
Applications
BLS2000 Electronic Dual Level Switch with Brass Tube Applications:
Level control for
- Hydraulics
- Lubrication systems
- Cooling
Q & A
BLS2000 Electronic Dual Level Switch with Brass Tube Q & A
+ What is the Barksdale Electronic Dual Level Switch with Brass?
The Electronic Dual Level Switch (Brass) is a level sensing instrument that uses an electronic sensing principle and a brass tube/fitting design. It can detect two discrete levels (switch points) and provides analog output.
+ What density of media can it measure?
It is capable of reliably measuring media with density less than 0.6 g/cm³.
+ What are the available resolutions and lengths?
Resolutions of 8 mm or 12 mm are available. The total length (L0) can range from 250 mm to 3000 mm (custom lengths also possible).
+ How many switch points does it support?
It supports a maximum of two switch points (i.e. two independently configurable levels)
+ What analog outputs are supported?
Two analog output options are available: 4–20 mA or 0–10 V
Downloads
Download Barksdale BLS2000 Electronic Dual Level Switch with Brass Tube Datasheet
Contact us at (855) 737-4714 to learn more or fill out our online form.
