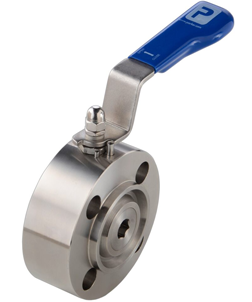

Parker Wafer Style Valve - Monoball Series

Parker’s wafer style valve Monoball series either isolates an instrument or sits between two process flanges to isolate a process line. It offers multiple advantages over traditional flange-to-flange single isolate ball valves such as space and weight saving.

Many applications use a large process valve to isolate an instrument valve such as a monoflange, which requires additional support and increases installation costs. A wafer style  valve can provide exactly the same function, but without these disadvantages.

All Parker wafer style monoball valves offer the option of captive studding, allowing the instrument valve to be removed for maintenance or replacement without shutting down the process line. The wafer style valves are available in four sizes, with 10, 15, 20 or 25 mm bores.

Parker Wafer Style Valve - Monoball Series Markets:

• Oil and Gas Offshore
• Oil and Gas Onshore
• Petrochemical
• Chemical

Parker Wafer Style Valve - Monoball Series Features/Benefits:

• Lightweight and compact design
• Reduced installation costs - can be fitted faster than traditional valves
• Easy maintenance
• Fewer components
• Safe and reliable; 4:1 Factor of Safety
• Single piece valve body eliminates potential leak paths
• Optional Fire Safe designed and tested to meet BS6755 Part 2/API 607

Parker Wafer Style Valve - Monoball Series Tech Specifications

BORE SIZE (MM):  10 mm, 15 mm, 20 mm, 25 mm
INSTALLATION:  Standard Flange Holes, Captive Studs
VALVE CONFIGURATION TYPE:  Block (Flange x Screw), Block (Flange x Flange)
MATERIAL:  316 Stainless Steel, 6Mo, Duplex
FLANGE SIZE (INCH):  1/2", 3/4", 1", 1 1/2", 2"
FLANGE FACE:  Raised Face, Ring Type Joint
ANSI FLANGE CLASS:  150, 300, 600, 900, 1500, 2500
CONNECTION SIZE:  1/2". Contact the factory for other sizes
CONNECTION STYLE:  NPT Female. Contact the factory for other styles
SEAT MATERIAL:  PTFE as standard. PEEK optional. 15 mm bore offered with PEEK seats only
HANDLE:  Optional lockable handle
CERTIFICATES:  Optional Fire Safe (with Graphite packing material) and NACE (316 Stainless Steel only)
PACKING MATERIAL:  PTFE as standard, Graphite packing fitted as standard for Firesafe option (API 607/BS6755 Pt2)
