Parker MESC Compliant Modular Manifolds

Parker’s range of MESC compliant manifolds and accessories enables customers to configure and order a complete small-bore instrumentation manifold and mounting system in a matter of minutes. Once customers have made their selection, Parker assembles and delivers the system, fully integrated and ready for installation.

All the MESC manifold-related products in this range stem from Parker’s Enterprise Framework Agreement with Shell, as a single source supplier of instrumentation valves, manifolds, process-to-instrument valves, fittings, tubing and related components. There are more than 40 preconfigured MESC-compliant systems to choose from, backed by an extensive range of two- and four-valve manifolds offering single isolate and single vent, double isolate and double vent, and double isolate, single equalise and single vent functions.

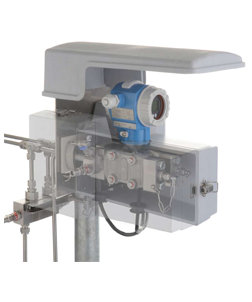

The range of MESC compliant products also includes sun shades and protective enclosures, backplate mountings, seal and purge pots, steam and electrical heating blocks, filling connectors and port protectors.

Parker MESC Compliant Modular Manifolds Markets:

• Oil and Gas Offshore
• Oil and Gas Onshore
• Petrochemical
• Chemical

Parker MESC Compliant Modular Manifolds Features/Benefits:

• Source all instrument MESC manifold mounting and protection needs from a single supplier and a proven inter-compatible range of components
• Eliminating on-site assembly time, and last-minute compatibility problems that can arise when using
• components from different suppliers
• Using an advanced flow path design that provides close coupling for high measurement integrity and avoidance of gauge line errors
• Gaining access to a connection system designed for ease of installation and subsequent lifecycle maintenance

Parker MESC Compliant Modular Manifolds Applications:

• Process to instrument interface

Parker MESC Compliant Modular Manifolds Tech Specifications:

BOLT MATERIAL:   ASTM A193-B8 CL2
MESC NUMBER:   609856.205.1, 609856.207.1, 609856.215.1, 609856.217.1, 609856.225.1, 609856.227.1, 609856.235.1, 609856.237.1, 609856.305.1, 609856.325.1, 609856.315.1, 609856.335.1, 609856.317.1, 609856.337.1, 609856.209.1, 609856.219.1, 609856.229.1 , 609856.239.1, 60
PROCESS/VENT SIZE:   10 mm, 3/8", 1/2"
OUTLET CONNECTION:   DIN 19213, 1/2” NPT M, 1/2” NPT F, 1/2” BSPP F, IEC 61518
CONNECTION TYPE:   Two Ferrule Compression Fitting, Single Ferrule Compression Fitting
BLOCK TYPE:   Double Isolate/Equalise/Vent, Double Isolate/Vent, Single Isolate/Vent
MANIFOLD TYPE:   4 Valve, 2 Valve
MAXIMUM OPERATING PRESSURE (BAR):   400, 413
MAXIMUM OPERATING TEMPERATURE (C):   200
PACKING MATERIAL:   PTFE, N/A, Graphite
CERTIFICATES:   ISO 10474-3.1B
