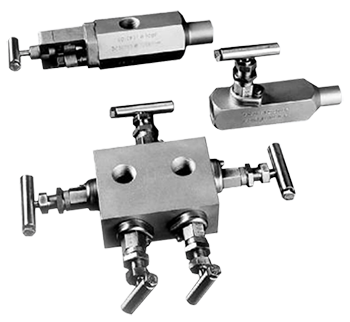

Parker PGI's wide variety of 2-Valve Manifolds permits the user to select and hook-up to virtually any pressure transmitter, gauge or switch. The controlled vent provides the option of venting to atmosphere or piping to a collector, depending on the media.
PGI's selection of 3-Valve Manifolds permit the user to select and hook-up any transmitter. Several 3-Valve Manifold styles are available with controlled vents for use where venting to atmosphere is not permitted and piping to collectors or vessels is required.
PGI's 5-Valve Manifolds permit the user to select and hook-up any chart recorder, transmitter or electronic flow meter (EFM) for gas applications. They also feature our WIDE Pattern technology, a unique configuration for no finger pinching operation of all five valves.
Parker's Versa-Mount bracket allows the easy mounting of most 2, 3 and 5-Valve Manifolds to a 2 pipe stand or wall-mounted application. All Manifolds feature PGI's PTFE Pressure-Core Stem Seal with 5 year warranty as standard, with the LoneStar design with PTFE packing also available.
All Manifolds are also offered with our Low-Torque Grafoil packed stem seals. To answer customer requests for a lower stem handle turning torque, PGI developed a proprietary assembly technique to lower stem torque by 50% which increases ease of operation, and therefore reduces stem abrasion and stem damage from over-torqueing. The Low-Torque Grafoil packed stem seal reduces packing adjustments and the associated maintenance costs, while extending the service life of the Grafoil packing.
In addition PGI Manifolds are available with a bonnet handle lock-out that prevents unauthorized cycling in either the open or closed position, or an anti-tamper bonnet that allows the bonnet stem to be placed in any position before removing the handle. OS &Y bonnets are also offered.
Parker Manifold, Instrument and Power - 2,3, and 5 Valve Series Markets:
- Chemical
- Petrochemical
- Oil and Gas
- Power
Parker Manifold, Instrument and Power - 2,3, and 5 Valve Series Features/Benefits:
- Pressure-Core Stem Seal technology
- Low Torque bonnet and packing design
- 316 Stainless and Carbon Steel Body and Bonnet are standard
- Available with Delrin, Kel-F,PEEK,PTFE, Tefzel,and Rylon Seats
- Anti-Tamper Bonnets
- Bonnet Lock Plates
- Various accessories for mounting
- Orifice sizes from .187 to .375
- Rock hard carbide ball seats
- Soft roddable seat styles
Parker Manifold, Instrument and Power - 2,3, and 5 Valve Series Applications:
- Process Control Lines
- Severe Service
- General shut-off service
- Instrumentation monitoring systems
Parker Manifold, Instrument and Power - 2,3, and 5 Valve Series Tech Specifications:
ORIFICE SIZE: .136" | .187" | .250" | .375"
PORT CONNECTION INLET: 1/4" thru 1/2" FNPT & MNPT | Flange
PORT CONNECTION OUTLET: Flange
BODY MATERIAL: Carbon Steel | 316 SS | Specialty Metals
MAXIMUM WORKING PRESSURE (PSI): 10,000
MAXIMUM WORKING PRESSURE (BAR): 690
MAXIMUM WORKING TEMPERATURE (F): 1,000
MAXIMUM WORKING TEMPERATURE (C): 538
PACKING MATERIAL: PTFE Pressure-Core | Low-Torque Grafoil | Packed PTFE | O-Rings
SEAT MATERIAL: Carbide Ball | Soft "Roddable" Seat
Contact us at (855) 737-4714 to learn more, or fill out our online form.
Parker PGI offers an extensive variety of 2, 3 and 5-Valve Manifolds to be used in all types of Instrumentation or Power applications and service conditions up to 10,000 PSI @ 200F in Carbon Steel and 316 Stainless Steel.
