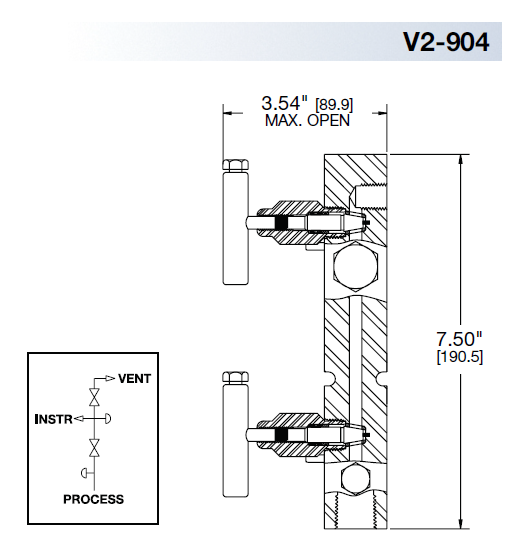

Parker Block Bleed Valves - Soft Seat Dimensions
V2-904
Parker Block Bleed Valves - Soft Seat Materials of Construction
| PART DESCRIPTION | CARBON STEEL | 316 SS |
| Body and Bonnet | ASTM A108 CS | ASTM A479-316 SS |
| Stem | ASTM A479-316 SS | ASTM A479-316 SS |
| Seal Retainer | ASTM A479-316 SS | ASTM A479-316 SS |
| Handle Assembly | ASTM A108 CS | ASTM A581 18-8 300 SS |
- PGI Carbon Steel Products are Alkaline Zinc plated for corrosion prevention.
- PGI 316 SS Products meet the requirements of NACE MR0175/ISO 15156-36.
- 100% Pressure Tested
Parker Block Bleed Valves - Soft Seat Max Cv Ratings
| ORIFICE SIZE | BODY STYLE Straight |
| .250" | 1.40 |
Approximate Valve Weight: 2.50 lbs (1.13 kg) each
Parker Block Bleed Valves - Hard Seat Dimensions
block & bleed Valves ~ Hard seat
block & bleed Valves ~ Hard seat
Parker Block Bleed Valves - Hard Seat Materials of Constructions
| PART DESCRIPTION | CARBON STEEL | 316 SS |
| Body and Bonnet | ASTM A108 CS | ASTM A479-316 SS |
| Stem | ASTM A479-316 SS | ASTM A479-316 SS |
| Seal Retainer | ASTM A479-316 SS | ASTM A479-316 SS |
| Handle | ASTM A108 CS | ASTM A581 18-8 300 SS |
Parker Block Bleed Valves - Hard Seat Materials of Constructions
| ORIFICE SIZE |
BODY STYLE Straight |
| .187 | .53 |
Approximate Valve Weight: 2.50 lbs (1.13 kg) each
