Semiconductor fabs can now replace their obsolete pneumatic EV manifolds with Valin's tool qualified manifolds. These field-proven manifolds are a drop-in replacement manifold that is a perfect solution for obsolete Producer Gas Box pneumatic EV manifolds 0190-09487 on your aging fleet of Producer process tools. The AC-150-2483 pneumatic EV manifold comes as a complete kit for ease of installation. Fabs can reduce wafer scrap, eliminate air leaks, and improve wafer yield with these new pneumatic EV manifold replacements.
We're so confident that these EV manifolds will improve your wafer yield that we will send you a product to evaluate at no charge for 60 days.
Click here to request POE (Product on Evaluation) order. Stock is available and ready to ship!
"Valin's Pneumatic EV Manifold Retrofit Kits have been an absolute life saver for us. Since upgrading to Valin's manifold solution, we have had to change out four valves at separate times. Without the ability to shut off the doors one at a time, we would have likely had four separate wafer scraps because of these four maintenance events. However, with this new technology, that hasn't been the case. The solution is truly a home run not only in the hardware, but the procedural materials that instructed us how to install it. Very easy and intuitive."
Dave McGuire, NXP Semiconductors
Video: Valin's Pneumatic EV Manifold Retrofit Solutions
Case Study: Semifab Reduces Wafer Scrap with Pneumatic EV Manifold Retrofit Kits
Case Study: Semi Fab Eliminates Air Leaks with Easy to Install Manifold Retrofit Kits
Article: Improving Yield through Upgraded Pneumatic EV Manifolds
Press Release: Valin Corporation Customers See Success with Pneumatic EV Manifold Retrofit Kits
Blog: Wafer Yield in the Semiconductor Industry
Producer Gas Box Pneumatic EV Manifold Replacement for 0190-09487 - Upgrade Benefits:
- Replace the entire Manifold in minutes
- Legacy Manifold is difficult to source with limited availability
- Replace individual valves in less than 5 minutes
- Reduce Tool Downtime
- Eliminate CDA leaks
- Improve performance with larger Cv (0.3) and higher flowrate (250 -300 l/min) for faster valve actuation
- Reduce the potential of wafer scrap due to leakage
- Valves rated to 150 Million Cycles
- The power consumption of each coil is 0.55 W, and the switching time is 8 ms
- Drop-in place solution (no holes to tap)
- Units tested and fab approved
- In Stock and ready to ship
Note: Full set of installation instructions printed on cleanroom paper included in kit (written by equipment engineers).
Clean, Simple Design
Valin AC-150-2483 Pneumatic Manifold

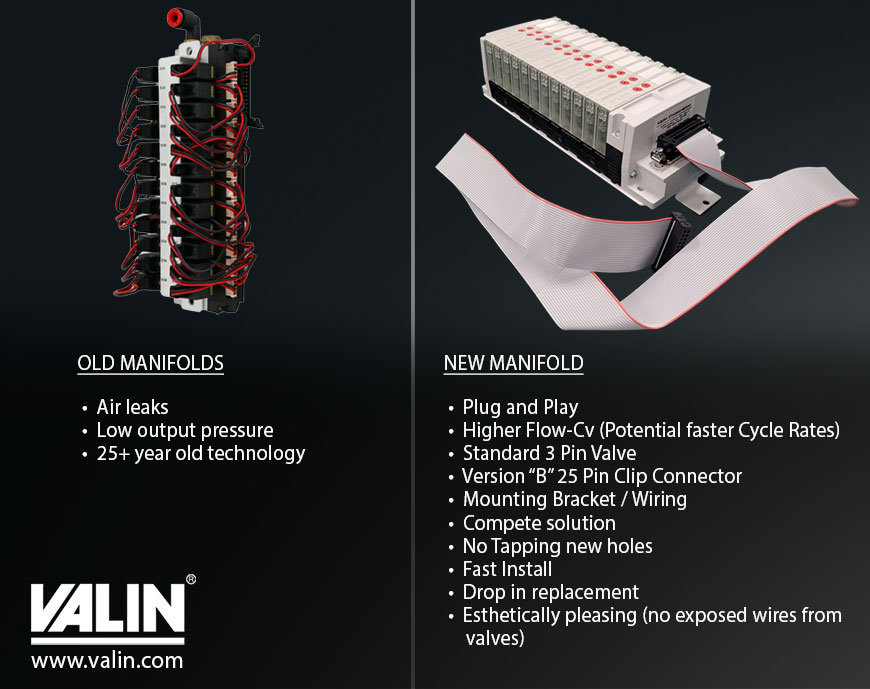

Valin's AC-150-2483 pneumatic manifold replaces the Producer Gas Box pneumatic manifold part 0190-09487.
Accessories & Spare Valves for Producer Gas Box Pneumatic Manifold
Valin Ported Exhaust Kit – Single, Part Number AC-150-2480
The Valin Single Ported Exhaust kit works with any manifold that includes the AVENITCS™ AV03 valves. The single kit changes the local ambient exhaust to a ported exhaust for manifolds with one ambient exhaust position. Shop Now
2x3/2-Directional Valve, Series AV03 - Part Number AC-5VLV-0005
AVENTICS™ 2x3/2-directional valve, Series AV03, with spring return, NC, 24 VDC. The AV03 Series provide a reliable basis for both compact handling systems and complex automation solutions. Within machine safety the Series AV03 offers intelligent solutions that significantly reduce your effort in creating a safe design. With the integration of the fieldbus and I/O-modules of the Series AES, all requirements for distributed control are available. Shop Now
Download Pneumatic Manifold Retrofit Kits Flyer
Have questions?
Contact our team of semiconductor technical specialists at (855) 737-4716, or email our team at manifold@valin.com to learn more.
The AC-150-2483 Producer Gas Box pneumatic manifold is a 12-station manifold with 2x3/2 pneumatic valves (24 valves total).
