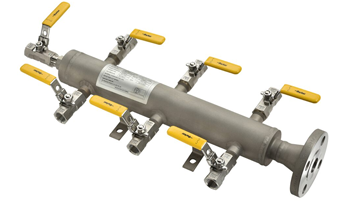

Air Header Distribution Manifolds - LPAHM Series

Parker's air header distribution manifolds are widely used in industrial chemical processing, plastic processing and energy industries and are approved for low pressure applications up to and beyond 175 psi.

Manufactured from AISI 316 stainless steel the air header distribution manifold offers complete customer system compatibility that reduces installation time and potential leak paths. The coded welded construction with non destructive tested design minimises the number of potential leak paths, rather than fabricating with instrumentation connections with tubing, therefore reducing labour costs.

The air header distribution manifolds are designed for use with air only and are supplied with a number of lockable ball valves on opposite sides, right side or left side only to prevent unauthorized access.

Parker Air Header Distribution Manifolds - LPAHM Series Product Features/Benefits

• Lockable handles as standard prevent accidental manual actuation of outlet valve
• Lightweight ball valve design
• Reduction in assembly time
• 316L Stainless Steel body
• 316L nominal bore body as standard removes the possibility of internal scaling
• 2“ nominal bore header
• Greater volume capacity supporting fluctuations in air compressor supply
• Welded body construction
• Guaranteed full penetration welds - coded welding and Non Destructive Testing (NDT) as standard
• Flanged and threaded inlet options
• Four support feet welded for wall mounting

Parker Air Header Distribution Manifolds - LPAHM Series Markets

• Oil and gas offshore and onshore
• Petrochemical
• Chemical
• Plastic processing
• Industrial chemical processing
• Power generation

Parker Air Header Distribution Manifolds - LPAHM Series Tech Specifications

MANIFOLD TYPE:  4-20 valve
INLET SIZE (INCH):  1/2", 3/4", 1"
INLET CONNECTION:  Raised Face, Female NPT, BSPT, BSPP
ANSI FLANGE CLASS:  150, 300, 600
DRAIN PORT SIZE:  1/2", 3/4", 1"
DRAIN CONNECTION:  Female NPT, BSPT, BSPP
DISTRIBUTION VALVE OUTLET SIZE (INCH):  1/2"
DISTRIBUTION VALVE OUTLET CONNECTION:  Female NPT
DRAIN OPTION:  Ball Valve Outlet, Ball Valve Plugged Outlet, Plugged Outlet, Plugged Distribution Outlet
CONFIGURATION:  Both Sides, Right Side, Left Side
MATERIAL:  Stainless Steel 316L
MAXIMUM WORKING PRESSURE (PSI):  275
MAXIMUM WORKING PRESSURE (BAR):  19
MINIMUM WORKING TEMPERATURE (°C):  -54
MINIMUM WORKING TEMPERATURE (F):  -65.2
MAXIMUM WORKING TEMPERATURE (°C):  232
MAXIMUM WORKING TEMPERATURE (F):  449
INDUSTRY APPLICATIONS:  Air distribution
BORE SIZE (INCH):  3/8"
BORE SIZE (MM):  10
