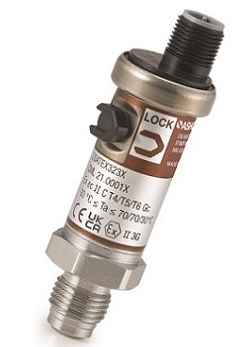

ZX12 High Purity Pressure Transmitter from Ashcroft

 The Ashcroft ZX12 high purity transmitter is ATEX and IECEx approved for use in hazardous locations.  The compact design allows for high density installations, while the 316L electropolished stainless steel construction is ideal for use with many compatible gases and provides excellent resistance to hydrogen embrittlement.


ZX12 High Purity Pressure Transmitter Features:

• ATEX and IECEx Type EXec (increased safety) approval
• Ultra-stable CVD Sensing Technology
• Ranges from vacuum to 3,000 psi, Available in gauge, compound and Absolute ranges
• Low internal volume (<0.9cm3)
• 20RA (0.50m) or optional 7RA (0.18m)
• Excellent EMI/RFI resistance
• Class 100 clean room packaged and double bagged
• CE and UKCA approved
• RoHS compliant

ZX12 High Purity Pressure Transmitter Applications:

• Industrial:
  • High Purity Gas Delivery Systems
  • Gas Sticks
  • Process Gas Analyzers

ZX12 High Purity Pressure Transmitter Specifications:

• Accuracy:  0.25% of span @ 73.4 F (23 C) Accuracy includes the effects of linearity, hysteresis and repeatability
• Stability:  0.25% Span/year
• Outputs:  4-20 mA (2 Wire)
• Pressure Ranges:
  • Vacuum & 45 psi to Vacuum & 3,000 psi
  • Gauge: 0-45 psi to 0-3,000 psi
  • Absolute: 0-45 psi to 0-3,000 psI
• Process Connection:  9/16-18 UNF Male/Female fixed, swivel or flow through (compatible with 1/4 VCR fitting)
• Wetted Material:  316L Stainless Steel
• Non-Wetted Materials: 304 Stainless steel, PBT
• Ingress Rating:  IP65 (with mating connector installed)
