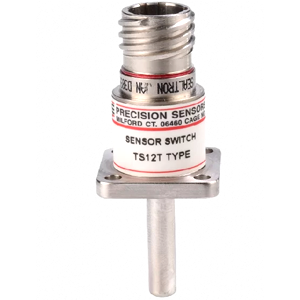

The TS12T Series Temperature Sensors from UE Precision Sensors are engineered for applications where accuracy, durability, and fast response are critical. Built around a platinum RTD sensing element and sealed within a rugged stainless steel housing, these sensors deliver stable, repeatable temperature measurement across a wide operating range.
Designed for harsh industrial, aerospace, and process environments, the TS12T Series combines high-pressure capability with customizable configurations—making it an ideal solution for monitoring oil, fuel, water, and coolant systems.
Features
TS12T Series Temperature Sensors Features and Benefits
- High Accuracy Across Wide Temperature Ranges: The TS12T Series delivers precise readings across extreme temperatures, helping maintain process consistency and equipment safety.
- Engineered for Harsh Conditions: With pressure ratings up to 12,500 PSI and rugged stainless steel construction, these sensors perform reliably in high-stress environments.
- Customizable for Your Application: Each sensor can be configured to meet exact requirements:
- Probe length and diameter
- Mounting fittings
- Electrical connections (MS connector or free leads)
- Resistance values (100, 500, or 1000 ohms)
- Minimized Conductivity Error
The design isolates the sensing element to reduce heat transfer errors, improving measurement accuracy and response time.
The TS12T Series stands out by combining precision sensing technology with robust mechanical design:
- Platinum RTD accuracy ensures reliable and repeatable temperature measurement
- Hermetically sealed stainless steel construction protects against moisture and contaminants
- Fast thermal response minimizes lag in dynamic systems
- Exceptional durability with resistance to shock, vibration, and extreme conditions
- Long service life with MTBF exceeding 200,000 hours
These sensors are purpose-built for industries where failure is not an option, including aerospace, semiconductor manufacturing, and industrial process control.
Specifications
TS12T Series Temperature Sensors Technical Specifications
- Sensor Type: Platinum RTD (Resistance Temperature Detector)
- Temperature Range: -200°F to 400°F
- Accuracy (Deviation): ±0.8 ohms up to 400°F
- Pressure Rating: Up to 12,500 PSI
- Temperature Coefficients:
- 0.00385 (European standard)
- 0.00392 (American standard)
- Media Compatibility: Liquids and gases compatible with stainless steel
- Electrical Options: MS connector or flying leads
- Max Current: 5 mA
- Typical Weight: ~4 oz
These specifications ensure reliable operation in both standard and extreme environments.
Applications
TS12T Series Temperature Sensors Applications & Use Cases
The TS12T Series is ideal for monitoring temperature in critical systems where accuracy and reliability are essential:
- Oil and lubrication systems
- Fuel systems in aerospace and industrial equipment
- Cooling and thermal management systems
- Water and process fluid monitoring
- Semiconductor and high-purity applications
Its rugged design and configurable options make it suitable for both OEM integration and retrofit installations.
Q & A
TS12T Series Temperature Sensors Q & A
Typical industries include:
- Aerospace and defense
- Semiconductor manufacturing
- Industrial process control
- Energy and fluid systems
These sectors rely on precise and durable temperature monitoring.
Accuracy is achieved through a platinum RTD element, minimized thermal conductivity error, and a hermetically sealed design that protects against environmental interference.
