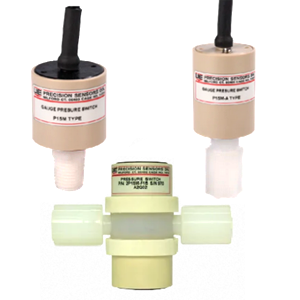

The P15M Series Teflon® Gauge Pressure Switch from UE Precision Sensors is purpose-built for high-purity wet process environments where traditional stainless steel components are not suitable. Designed to monitor pressure above atmospheric levels, the P15M Series delivers reliable switching performance in chemically aggressive applications.
With advanced fluoropolymer construction and precision switching technology, the P15M Series is ideal for chemical delivery systems, DI water processes, and other environments where corrosion resistance and cleanliness are critical.
Features
P15M Series Teflon Gauge Pressure Switch Features & Benefits
- Engineered for Corrosive & High-Purity Environments - Unlike standard pressure switches, the P15M Series uses fluoropolymer materials such as PFA and PTFE for wetted parts, making it highly resistant to aggressive chemicals.
- Ideal Alternative to Stainless Steel Designs - In applications where 316L stainless steel is not acceptable, the P15M provides a reliable solution without compromising performance.
- Accurate & Repeatable Switching - A negative-rate spring mechanism enhances setpoint stability and repeatability, helping maintain consistent control in critical processes.
Multiple Configuration Options
- P15M: Factory-set, tamper-resistant
- 2P15M: Dual-switch capability for monitoring two conditions
- P15M-A: Field-adjustable version for flexibility
These options allow users to match the switch precisely to their application needs.
- Excellent Chemical Resistance - Designed specifically for wet chemical systems, the P15M Series performs reliably in environments where other materials may degrade or fail.
Specifications
P15M Series Teflon Gauge Pressure Switch Specifications & Technical Details
| P15M | P15M-A | 2P15M | |
| Available Settings | 5 to 75 PSIG | 5-35 psig, 20-50 psig, 35-75 psig | 5-50 PSIG |
| Deadband | 2 psi + 7% of Setting | 3 PSIG + 9% of Set Pt. 3 PSIG + 10% of Set Pt. 3 PSIG + 12% of Set Pt. | 3 PSIG + 9% of Set Pt. |
| Repeatability | 0.5 psi + 2% of Setting | 0.5 psi + 2% of Set Pt. 0.75 psi + 2% of Set Pt. 1.0 psi + 2% of Set Pt. | 0.5 psi + 2% of Setting |
| *Proof Pressure | 100 PSIG | 100 PSIG | 60 PSIG |
| Operating Temp. Range | 40 to 120 F | 40 to 120 F | 40 to 120 F |
| Wetted Materials | PFA or PTFE and PFA | PFA or PTFE and PFA | PFA or PTFE and PFA |
| Media Connections | 1/4 Flare type 1/4 Flare type flow through 1/4 MNPT Super 300 Type | 1/4 Flare type 1/4 Flare type flow through 1/4 MNPT Super 300 Type | 1/4 Flare type 1/4 Flare type flow through |
| Electrical Connections | Free Leads Crimp Type Connector | Free Leads Crimp Type Connector | Free Leads Crimp Type Connector |
| Min. Operating Life | 1 Million Cycles | 1 Million Cycles | 1 Million Cycles |
| Warranty | 18 Months | 18 Months | 18 Months |
*Higher proof pressures available
Applications
P15M Series Teflon Gauge Pressure Switch Applications & Use Cases
- Chemical Delivery Systems - Ensures accurate pressure monitoring in aggressive chemical handling processes.
- DI Water Systems - Maintains control and safety in ultra-pure water distribution environments.
- Semiconductor Wet Processing - Supports contamination-sensitive processes where metallic components are not acceptable.
Industrial Fluid Handling - Provides reliable switching in corrosive fluid systems requiring long-term durability.
The P15M Series is widely used in systems where maintaining purity and resisting chemical attack are essential for operational success.
Q & A
P15M Series Teflon Gauge Pressure Switch Q & A
It is widely used in semiconductor manufacturing, chemical processing, and DI water systems—anywhere corrosion resistance and high purity are essential.
Downloads
Download Teflon Pressure Switches for High Purity and Corrosive Applications Brochure
