Solenoid Valves for Dust Collector Systems from ASCO™

ASCO Solenoid Valves for Dust Collector SystemsEffective dust collection depends on reliable filter cleaning. In pulse-jet dust collector systems, controlled bursts of compressed air remove accumulated dust from filter media, helping maintain airflow, filtration performance, and system efficiency. The valves responsible for delivering and controlling these air pulses must provide fast, consistent operation under demanding industrial conditions.

ASCO™ offers purpose-built solutions for dust collector systems, including 353 Series Pulse Solenoid Valves, 355B Series Tank Systems, and 110 Series Pilot Valve Boxes. Together, these products provide the valve control, compressed-air capacity, and centralized pilot operation needed for effective pulse-jet filter cleaning.

Whether you are designing a new dust-collection system, replacing existing pulse valves, or upgrading an installed system, ASCO dust collector products provide flexible configurations designed to meet a wide range of industrial filtration requirements.


Capabilities

Solenoid Valves for Dust Collector System Capabilities

Effective dust collection depends on more than simply moving contaminated air through a filter. Filters must also be cleaned regularly to remove accumulated dust and maintain airflow and collection performance. In pulse-jet systems, short bursts of compressed air are directed through the filter media to dislodge collected particles.

ASCO provides a range of valve and pneumatic components designed specifically for this demanding cleaning process. The product family includes pulse solenoid valves, tank systems, and pilot valve boxes that work together to provide fast, repeatable control of the compressed-air pulses used in dust collectors.

Fast, Controlled Filter Cleaning

Pulse valves must open rapidly to deliver an effective burst of compressed air. The ASCO 353 Series Pulse Solenoid Valve is specifically designed for reverse-jet dust-collector applications and combines high flow capacity with rapid response to help provide effective filter cleaning. Emerson also highlights its ability to use less compressed air while maintaining high peak pressure.

Efficient Use of Compressed Air

Compressed air is a high operating cost in many industrial dust-collection systems. Valve performance can therefore have a direct effect on energy consumption. Properly sized and configured pulse valves can deliver the pressure and airflow needed for filter cleaning while helping avoid unnecessary compressed-air usage.

Coordinated Pulse Control

A dust collector may contain many filter elements and require numerous cleaning pulses. ASCO 110 Series Pilot Valve Boxes provide a centralized way to remotely control multiple pulse valves, with configurations containing two to twelve integrated direct-operated pilot valves.

High-Flow Air Supply

The ASCO 355B Series Tank System is designed for dust-collector applications that require high flow capacity. By providing a dedicated compressed-air storage and distribution solution, the tank system complements the pulse valves used to clean filter media.

A Complete Dust-Collector Valve Solution

Together, the ASCO dust-collector products address several important parts of a pulse-jet cleaning system:

  • 353 Series Pulse Solenoid Valves — Deliver rapid compressed-air pulses for filter cleaning.
  • 355B Series Tank Systems — Provide high-flow compressed-air capacity for dust-collector applications.
  • 110 Series Pilot Valve Boxes — Provide centralized remote control of multiple pulse valves.

This product approach allows engineers and system designers to select the individual components needed for their dust-collection equipment while maintaining a consistent ASCO solution.

Designed for Industrial Dust Collection

ASCO dust-collector products are intended for applications where reliable pulse cleaning, high airflow, rapid valve response, and long service life are important. Emerson identifies dust collection as an application area where improved valve performance can contribute to longer equipment life, reduced maintenance, lower compressed-air consumption, and competitive operating costs.

Products

Solenoid Valves for Dust Collector System Products

ASCO offers purpose-built valves and pneumatic components for pulse-jet dust-collector systems. Three key products provide the foundation for many applications: the 353 Series Pulse Solenoid Valve, 355B Series Tank System, and 110 Series Pilot Valve Box.



353 Series Pulse Solenoid Valves

ASCO 353 Series Pulse Solenoid ValvesThe ASCO 353 Series Pulse Solenoid Valve is a solenoid pilot-operated diaphragm valve designed specifically for reverse-jet dust collectors. Its high flow capacity and rapid response help deliver powerful, repeatable cleaning pulses to filter media.

The 353 Series is available in multiple configurations to accommodate different flow requirements, port sizes, electrical specifications, and application conditions. A patented Quick Mount Clamp connection is also available on applicable configurations to help simplify installation.

The 353 Pulse Solenoid Valve is designed for direct control of compressed-air cleaning pulses in dust collectors and reverse-jet filtration systems.

Learn more about 353 Pulse Solenoid Valves for Dust Collector Systems.



355B Series Tank System

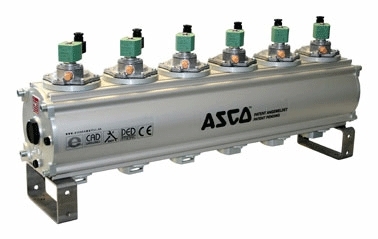

ASCO 355B Series Tank SystemThe ASCO 355B Series Tank System is designed for dust-collector applications requiring high flow capacity. Its tank construction uses an aluminum profile with end covers and is designed to provide a practical compressed-air supply solution for pulse-cleaning applications.

The 355B Series is available with different port and connection configurations and can be specified for applications with particular environmental and regulatory requirements.

The 355B Tank System is for dust collector systems requiring a high-flow compressed-air tank system to support pulse cleaning.

Learn more about the 355B Tank System for Dust Collector Applications.



110 Series Pilot Valve Boxes

ASCO 110 Series Pilot Valve BoxesThe ASCO 110 Series Pilot Valve Box provides centralized control for multiple pulse valves. Compact configurations contain two to twelve integrated direct-operated pilot valves and are specifically designed for remote control of ASCO 353 Series pulse valves.

Centralizing the pilot valves can help organize pneumatic and electrical connections while providing a practical control interface for multi-valve dust-collection systems.

The 110 Pilot Valve Boxes are suited for dust collectors requiring centralized remote control of multiple ASCO 353 Series pulse valves.

Learn more about the 110 Pilot Valve Box for Dust Collection Systems.



Selecting the Right Dust-Collector Components

The right combination depends on the design and operating requirements of the dust collector. Important considerations include:

  • Number of pulse valves
  • Required airflow and pulse performance
  • Compressed-air pressure
  • Electrical voltage and frequency
  • Port and connection sizes
  • Operating temperature
  • Environmental conditions
  • Available installation space
  • Required certifications or approvals

Valin can help you identify the appropriate ASCO components based on your dust-collector design and application requirements.

Applications

Solenoid Valves for Dust Collector System Applications

Industries use dust-collection equipment to capture airborne particles generated during manufacturing, processing, material handling, and other industrial operations. In pulse-jet dust collectors, compressed-air pulses periodically clean the filter media. The performance of the valves controlling those pulses can affect how effectively the filters are cleaned and how much compressed air the system consumes.

Industrial Manufacturing

Manufacturing processes can generate dust and particulate matter that must be captured before it accumulates on equipment or enters the surrounding work environment. ASCO pulse valves provide rapid pneumatic pulses for automated filter cleaning.

Concrete and Cement Processing

Concrete, cement, and aggregate operations can generate significant amounts of airborne particulate material. Pulse-jet dust collectors help maintain filtration performance by periodically cleaning accumulated material from the filter media.

Grain, Agriculture, and Feed Processing

Handling and processing grain, feed, and agricultural materials can produce combustible and non-combustible dust. Automated filter cleaning helps dust-collection systems maintain airflow while handling continuous processing demands.

Food Processing

Food manufacturing and processing operations may require dust collection around conveying, mixing, grinding, milling, and material-handling equipment. Reliable pulse cleaning helps filtration equipment continue operating effectively between maintenance intervals.

Metalworking and Foundries

Grinding, abrasive blasting, casting, and other metalworking processes can produce substantial quantities of particulate matter. High-flow, rapid-response pulse valves can support the frequent filter cleaning these environments require.

Pharmaceutical and Life Science Manufacturing

Pharmaceutical and life science processes can require controlled handling of fine powders and particulates. Dust-collection equipment can incorporate pulse-jet cleaning to help maintain filter performance while supporting continuous operation.

Woodworking and Wood Products

Cutting, sanding, machining, and other woodworking processes produce wood dust that must be collected efficiently. Pulse valves help automated dust collectors periodically clean their filter media.

Bulk Material Handling

Conveyors, transfer points, silos, hoppers, and other material-handling equipment can create dust during movement of dry materials. Dust collectors equipped with pulse-jet cleaning can use ASCO valve technology to maintain filtration performance.

Designed for Demanding Dust-Collection Environments

ASCO's dust-collector product family is intended for applications where rapid pulsing, high flow, reliable operation, and efficient compressed-air use are important considerations.

For specialized environments, product configuration should be reviewed carefully to ensure that the selected valve, tank system, and pilot-control components meet the application's pressure, temperature, electrical, environmental, and certification requirements.

Q & A

Solenoid Valves for Dust Collector Systems

+How do I choose the correct ASCO pulse valve for my dust collector?
The correct ASCO pulse valve depends on several factors, including the dust collector's design, required airflow, pulse pressure, pipe and port size, electrical supply, operating temperature, and the characteristics of the filter media being cleaned. The 353 Series is available in multiple configurations, so the valve should be matched to the specific requirements of the dust-collection equipment rather than selected by size alone.
+What is the difference between a pulse valve and a pilot valve?
A pulse valve, such as the ASCO 353 Series, is the larger valve that releases the compressed-air pulse used to clean the dust-collector filter. A pilot valve controls the operation of the pulse valve. The ASCO 110 Series Pilot Valve Box groups multiple pilot valves together so they can remotely control several 353 Series pulse valves from a centralized location.
+Does a dust collector need a tank system?
A tank system can be an important part of a pulse-jet dust collector when the application requires a high-flow compressed-air supply to support effective filter cleaning. The ASCO 355B Series is specifically designed for dust-collector applications requiring high flow capacity. Whether a particular tank configuration is appropriate depends on the dust collector's air demand, pressure requirements, pulse frequency, and overall system design.
+How often do dust-collector pulse valves need to operate?
There is no single operating frequency that applies to every dust collector. Pulse frequency depends on factors such as dust loading, filter type, differential pressure, airflow, cleaning strategy, and the control system. The valves should be selected for the expected cycling requirements of the application, and the dust collector should be operated according to the equipment manufacturer's recommended cleaning sequence.
+Can ASCO dust-collector valves help reduce compressed-air consumption?
Yes. Valve performance can influence how efficiently compressed air is used during filter cleaning. Emerson states that the ASCO 353 Series is designed to provide high flow and high peak pressure while using significantly less air than conventional approaches, which can create opportunities for energy and operating-cost savings. Actual savings will depend on the existing equipment, operating conditions, pulse settings, compressed-air supply, and system design.

Downloads

Download ASCO Solenoid Valves for Dust Collector Systems Brochure





Talk to one of our process control experts today at (855) 737-4714 or fill out our online form to learn more.
