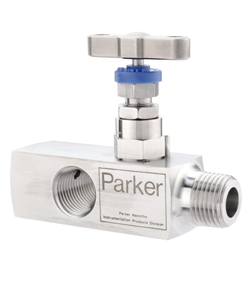

Parker Multi-Port Gauge Valves
Parker’s Multi-port gauge valves are purpose designed valves for operation up to 6000 psig (414 bar) and 10000 psi (689 bar). Complete with standard PTFE gland packing and self centering none rotational tip gives the user assurance of bubble tight seat shut off. For gaseous application soft tipped optional seating is available. A wide variety of connector ends are offered for all types of installations. NACE compliance and oxygen clean are also available along with an extensive list of materials. Each valve has 3 female outlets giving the user optimum selection for instrument positioning and location.
Inlet Size (inch) 1/2 NPT, 3/4 NPT
Inlet Connection Male
Outlet Size (inch) 3 x 1/2 NPT
Outlet Connection Female x 3
Material Stainless Steel, Monel, Duplex, Super Duplex, Hasteloy, Carbon Steel, 6Mo, Titanium, Incoloy 825, Incoloy 625
Flow Factor 1 (Cv) 0.35 standard
Maximum Working Pressure (psi) 6000, 10000
Maximum Working Pressure (Bar) 414, 689
Minimum Working Temperature (C) -54°C
Maximum Working Temperature (C) +538°C
Minimum Working Temperature (F) -65°F
Maximum Working Temperature (F) +1000°F
Seat Material Metal/metal seated
Packing Material PTFE as standard, graphite optional
Valve Option To order individual bleed valves and plugs contact factory
Series HGV
Parker Multi-Port Gauge Valves Features
- Rolled spindle operating threads
- Stainless steel construction as standard
- PTFE packing standard, optional graphite
- Alternative tip and materials of construction available
- Self centering non rotating spindle tip for bubble tight shut off
- Colour coded functional identification
- Back stop spindle for blowout prevention and minimal atmospheric leakage
- Low torque operating T bar handle.
- Externally adjustable gland
- Base mount option
- Variety of end connections including integral compression one piece bodies
- Dust cap to prevent ingress of contamination to operating thread
- Bonnet locking pin fitted as standard
Parker Multi-Port Gauge Valves Specifications
Inlet Size (inch) 1/2 NPT, 3/4 NPTInlet Connection Male
Outlet Size (inch) 3 x 1/2 NPT
Outlet Connection Female x 3
Material Stainless Steel, Monel, Duplex, Super Duplex, Hasteloy, Carbon Steel, 6Mo, Titanium, Incoloy 825, Incoloy 625
Flow Factor 1 (Cv) 0.35 standard
Maximum Working Pressure (psi) 6000, 10000
Maximum Working Pressure (Bar) 414, 689
Minimum Working Temperature (C) -54°C
Maximum Working Temperature (C) +538°C
Minimum Working Temperature (F) -65°F
Maximum Working Temperature (F) +1000°F
Seat Material Metal/metal seated
Packing Material PTFE as standard, graphite optional
Valve Option To order individual bleed valves and plugs contact factory
Series HGV
