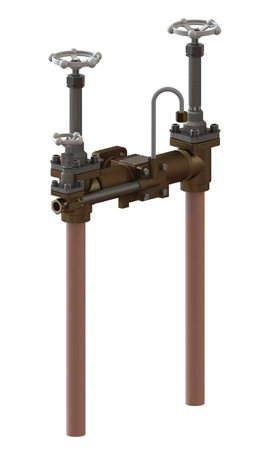

The Parker Bestobell's manifold fill assembly is the joining together of four valves: top fill, bottom fill, check valve and drain valve. It is available in two sizes 25mm (1) and 40mm (1 ). The design makes it a simple valve to operate from the user perspective. The manifold can be supplied with various inlet connections to suit customer requirements. Located within the valve is a spring to close the check valve to prevent back wash of media at the end of the filling cycle. A drain valve is fitted to release any trapped media in the fill block. A warm-up leg is also included for the connection of a thermal relief valve. The unit is supplied ready to be fitted to the tank, with pipe specifications supplied by the customer.
Parker Cryogenic Manifold Fill Assemblies Markets:
- Industrial Gas
Parker Cryogenic Manifold Fill Assemblies Features / Benefits:
- A one piece body reduces the number of potential leak paths and simplifies the piping system
- The unique internal characteristics reduces the pressure drop and vessel filling time
- Complete valve assembly reduces the tank build time
- Check valve for additional safety
- Self-draining strainer prevents debris entering the system
- Bolted bonnet headworks allow for easy maintenance
- Designed and engineered for use with Group 1 gases
- Designed and manufactured in accordance with ASTM B31.1, BS EN 1626 and BS ISO 21011
- Optional full material traceability backed by BS EN 10204 3.1/3.2 certification
- Manual operated inside screw globe valves
- Available with copper and Stainless Steel stubs
- CE marked according to the Pressure Equipment Directive
Parker Cryogenic Manifold Fill Assemblies Liquid / Gas Type:
- Oxygen (O2)
- Nitrogen (N2)
- Argon (Ar)
- Carbon Dioxide (CO2)
- Krypton (Kr)
- Neon (Ne)
- Hydrogen (H2)
- Nitrous Oxide (N2O)
- Sulphur Hexafluoride (SF6)
- Natural Gas (CH4)
- Ethylene (C2H4)
- Trifluoromethane (CHF3)
Parker Cryogenic Manifold Fill Assemblies Applications:
- Transport
- Storage
- Defence
- Processing
Contact us at (855) 737-4714 to learn more, or fill out our online form.
The Parker Bestobells cryogenic manifold fill assemblies are specifically designed for cryogenic static storage tanks to replace the traditional gang of valves linked together with piping and a large amount of welding and brazing.
