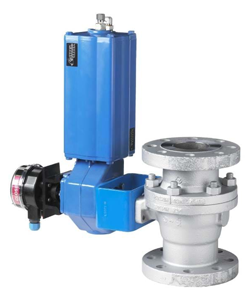

Neles has further developed the flanged ball valve series of MBV. The new X-Series is particularly designed to fulfill the requirements of chemical, petrochemical and refining industries. The proven special shaft/ball connection enables X-Series to be used in the most demanding high cycling applications, and also assures tight shut-off even with the lowest pressure differentials. The wide material and seat selection of X-Series makes it possible to choose the most suitable combination according to customers' specifications.
Features
Series X-MBV Modular Ball Valve Features:
- V-ring gland packing ensures long maintenance-free operation.
- Spiral wound body joint gasket for leak free operation.
- Live loaded packing as standard option for trunnion mounted valves.
- Q-trim option for reduced noise and cavitation.
- Scraping seat as standard, can be locked.
- Splined ball/shaft connection for good torque transmission.
- Trunnion design in 10" - 16".
- ATEX
Specifications
Series X-MBV Modular Ball Valve Specifications:
- Size Range
- 1" ... 16"
- Pressure Classes
- ASME 150 and 300
- Tightness
- Separate ball and shaft assure good tightness, even with metal seats and low shut-off pressures.
- Bubble tight shut-off with soft seats.
- Versions, Details
- V-ring gland packing ensures long maintenance-free operation.
- Spiral wound body joint gasket for leak free operation.
- Live loaded packing as standard option for trunnion mounted valves.
- Q-trim option for reduced noise and cavitation.
- Scraping seat as standard, can be locked.
- Splined ball/shaft connection for good torque transmission.
- Trunnion design in 10" - 16".
- ATEX
- Full Bore
- High Cv per nominal size.
- Straight ball opening offers low flow resistance.
- True full-bore ball (cylindrical flow path).
- Minimized Emissions
- Uninterrupted circular spiral wound body gasket.
- No bending forces to gland packing.
- Live loaded gland packing available for seat supported valves.
Applications
Series X-MBV Modular Ball Valve Applications:
- Pulp & paper
- Digesters and fiber lines
- Liquor service
- Chemical recovery
- Sludge treatment
- TMP-plants
- Deinking and recycling plants
- Steam
- Paper mill applications
Q & A
Series X-MBV Modular Ball Valve Q & A
It uses an uninterrupted circular spiral-wound body joint gasket and options like live-loaded gland packing to minimize emissions.
Downloads
Download Neles® Modular Ball Valve Series X-MBV Datasheet
