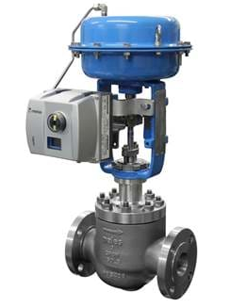

Neles® Linear Globe Valve

The Best Control Accuracy and Wide Range of Application

Neles® Linear Globe Valve Features

  • Wide variety of trim options and  wide material selection for different application including general and severe process.
  • Contoured plug, special multi drilled and multi staged trim are designed for high pressure drop of both compressible and uncompressible fluid as it enables the flow velocity.
  • Quick change trim and top entry construction
  • Low emission according to ISO 15848

Neles® Linear Globe Valve Benefits

  • Easy in-line maintenance and valve assembly and self guiding
  • Low cost of ownership and minimized maintenance need
  • Stable process and noise control
  • One piece body to minimize the leak paths and make the valve insensitive to pipe stress

Neles® Linear Globe Valve Specifications

Series:    GU, GB, GM, GD, GW
Design:    Linear globe valve
Size range:    DN 25 - 500 / 1" - 20"
Pressure classes:    ANSI 150 – 4500
Temperature range:    -198 °C … +593 °C
