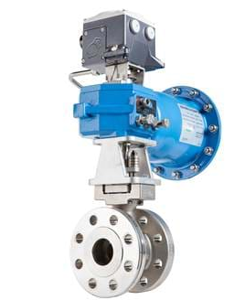

Neles™ Finetrol Eccentric Rotary Plug Valve for Control Services

Outstanding Performance, Reliability and Safety for General and Demanding Control Applications

Neles™ Finetrol Eccentric Rotary Plug Valve for Control Services Features

• Heavy duty anti-blowout shaft.
• Rotating, dynamic Q-trim attenuator for anti-cavitation and noise abatement.
• Low emissions according to ISO 15848 with wide temperature range and the longest endurance class.
• Certified safety performance, capable to SIL 3 level according to IEC 61508
• Fire safe certification according to API 607, 6th edition

Neles™ Finetrol Eccentric Rotary Plug Valve for Control Services Benefits

• Heavy-duty design withstands impurities and thermal cycles and ensures extensive life time.
• Unique balanced plug design reduces dynamic torque and allows accurate, stable control for the full 90 degrees rotation.
• Effective, rotating Q-trim attenuator for cavitation and noise abatement is a self flushing design and capable to handle dirty fluids also.
• Live loaded rotary packing ensures excellent control for fugitive emissions with long endurance.
• Fire safe, fugitive emission and SIL certification together with anti-blowout shaft design meet the most stringent HSE requirements for control valves.
• Excellent reliability with low maintenance cost.
• Versatile mounting orientations.

Neles™ Finetrol Eccentric Rotary Plug Valve for Control Services Specifications

Body Construction:    Flanged
Body Pressure Rating:    PN 10 - 100 / ASME Class 150 - 600
Face to Face:    According to IEC 60534-3-2 / ISA 75.08.02 or IEC 60534-3-1
Size Range:    DN 25 - 250 / 1" - 10"
Temperature Range:    -200 C +425 C / -328 ...+797 F
Tightness:    According to ANSI/FCI 70-2 class IV (metal seat) and class VI (soft seat)



Download Neles Finetrol Eccentric Rotary Plug Valve for Control Services Datasheet
