The GF7 Rotating Beacon inherits the rugged, IP69K-rated durability of the GL7, while using LED control to simulate 360° rotation around the unit. It operates on a simple voltage-input system with a 48V rating for construction equipment. Available in amber only, it delivers simple and reliable visual alerts.
Features
GF7 Rotating Beacon Features:
- Compact Rotating Beacon Engineered for Demanding Environments
- Flowing Amber Illumination for 360° Visibility
- Provides high visibility from all angles using flowing illumination, enhancing safety and hazard awareness.
- Control Option
Wire Lead Control - Non-communication type compatible with conventional voltage input control systems.
Specifications
GF7 Rotating Beacon Specifications:
| Model | GF7-48N-Y |
| Rated Voltage | DC48V |
| Operating Voltage Range | DC35V ～ DC60V |
| Rated Current Consumption DC48V Typ. | 0.06A |
| Rated Current Consumption DC48V Max | 0.12A |
| Rated Power Consumption Max | 5.8W |
| Operating Ambient Temperature | -40℃ to +85℃ |
| Operating Ambient Humidity | 90% RH or less (No condensation) |
| Storage Ambient Temperature | -40℃ to +85℃ |
| Storage Ambient Humidity | 90% RH or less (No condensation) |
| Mounting Location | Indoor/Outdoor (Construction equipment allowed) |

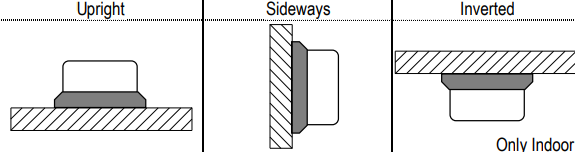

| Mounting Direction |  |
| Protection Rating | IP6X, IPX6 (IEC 60529), IPX9K (ISO 20653) |
| Environmental Condition | Upright / Sideways |
| Vibration Resistance | 110m/s2 （JIS D 1601:1995） |
| Impact Resistance | 1,000m/s2 , 11ms （IEC60068-2-27:2008） |
| Mass (Tolerance ±10%) | 0.14kg (Without accessories) |
| Conformity Standards | EN 61000-6-2 EN 61000-6-4 EN IEC 63000 KS C 9610-6-2 KS C 9610-6-4 FCC Part15 SubpartB ClassA ICES-003 Class A |
| Remarks |
|
Applications
GF7 Rotating Beacon Applications:
Q & A
GF7 Rotating Beacon Q & A
+ What voltage inputs does the GF7 support?
The beacon supports DC 12–24V, suitable for a wide range of industrial vehicles and equipment.
+ Is the GF7 waterproof or weather-resistant?
Yes. It meets IP69K standards, offering protection against high-pressure, high-temperature water, dust, and harsh environments.
+ What types of light patterns are available?
The GF7 features multiple rotating and flashing patterns that can be customized depending on the model and control type.
+ Can I change the color of the light?
Yes. The GF7 uses RGB LEDs, allowing it to display seven different colors including red, blue, green, amber, white, cyan, and purple.
+ Can I synchronize multiple beacons together?
Yes, synchronization is supported when multiple units are installed, particularly through CAN-bus control for coordinated signaling.
