Engineered with advanced filtration media technology, these filters effectively remove contaminants such as moisture and particulates to ensure the hydrogen used in fuel cells is of the highest quality. Parker is committed to supporting the hydrogen economy by providing reliable and robust solutions to enable a sustainable energy future.

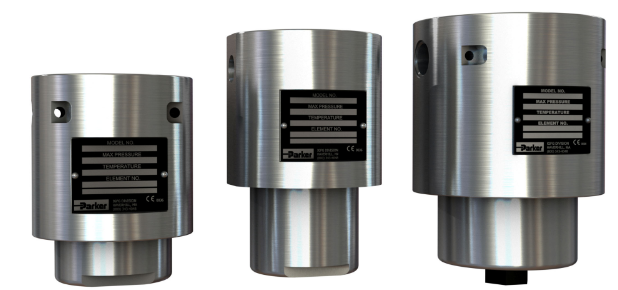

These are the first in a line of filters created specifically for use with hydrogen gas. The design offers a familiar configuration of an in-line mounted style which features a head, bowl and high efficiency rated element. The filter also utilizes 316 stainless steel to reduce risk of hydrogen embrittlement, as well as multiple port type options for a wide range of application coverage.
These filters have a pressure safety factor of 3.8, which is above the industry standard safety factor of 2.5, and are listed with Canadian Registration Numbers (CRN) in all provinces. Additionally, they carry CE Marking in accordance with the Pressure Equipment Directive 2014/68/EU.
Features
Hydrogen Gas Filters for Fuel Dispensing Features:
- 316 Stainless Steel Filter Housings
- 700 Bar (10,152) Max Pressure
- 60 to 300 g/s Flow Rates
- Parker's Depth Style Filter Elements
Specifications
Hydrogen Gas Filters for Fuel Dispensing Specifications:
| Filter Type | Coalescing & Particulate |
| Housing Material | 316 Stainless Steel |
| Port Type | Cone & Thread or SAE |
| Application | Hydrogen Refueling Station, Compression, & Storage |
| Maximum Operating Pressure | 1000 BAR (14,503 PSI) |
| Maximum Operating Temperature | 200°C (392°F) |
| Gas Flow Rate | Up to 120 g/s |
| Notes | CRN in all provinces, CE marking in accordance with the Pressure Equipment Directive 2014/68/EU |
Dimensions

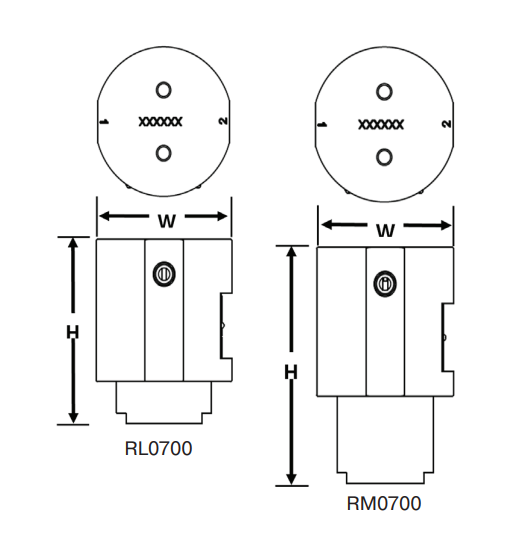

Hydrogen Gas Filters for Fuel Dispensing Weights & Dimensions:
| Filter Model | Height | Width | Weight | |||
| IN | MM | IN | MM | LB | KG | |
| RL0700 | 4.4 | 111.8 | 3.4 | 86.4 | 9 | 4 |
| RM0700 | 5.4 | 137.2 | 3.4 | 86.4 | 10 | 4.5 |
| RM1000 | 6.3 | 160 | 4.6 | 116.8 | 20 | 9.1 |
| RH1000 | 6.3 | 160 | 4.6 | 116.8 | 20 | 9.1 |
Q & A
Hydrogen Gas Filters for Fuel Dispensing Q & A
By acting as the final defense at the dispenser to ensure clean hydrogen enters the vehicle, protecting the proton exchange membrane and fuel cell performance.
Downloads
Download Parker Hydrogen Filtration for Fuel Dispensing Brochure
