320 3-Way Solenoid Valves from ASCO™

320 3-Way Solenoid Valves from ASCO™The ASCO™ 320 3-Way Solenoid Valve, also known as 8320, provides dependable direct-acting control for a wide variety of general-service applications. Its compact design, flexible configurations, and availability in brass or stainless-steel construction make it a versatile choice for controlling air, inert gases, water, and light oil.
The Series 320 is available in normally closed, normally open, and universal 3-way configurations, with multiple port sizes, flow capacities, voltages, and coil options. Specialized versions are also available for applications requiring long service life, rapid cycling, reduced power consumption, or operation in demanding environments.

Advantages

320 3-Way Solenoid Valve Advantages

The ASCO 320 Series combines direct-acting solenoid operation with a compact valve design suited to a broad range of fluid-control applications. Its 3-way configuration allows the valve to direct, shut off, or reroute media within a system, making it useful for applications requiring reliable two-position flow control.

The 320 Series is designed with flexibility in mind. Depending on the model, customers can select from brass or stainless-steel bodies, different orifice and flow capacities, AC or DC voltage options, and normally closed, normally open, or universal valve functions.

A major advantage of the ASCO 320 is that it does not require a minimum operating pressure differential, which can simplify its use in systems where pressure conditions vary. The valve can also be installed in any mounting position, providing greater flexibility when designing or modifying equipment.

Why Choose the 320 Series?

  • Direct-acting operation for dependable solenoid control
  • 3-way valve configurations for flexible flow routing
  • Brass and stainless-steel constructions for different application requirements
  • Multiple flow capacities and orifice sizes to accommodate different system needs
  • AC and DC voltage options for integration with different control systems
  • No minimum operating pressure differential required
  • Flexible mounting orientation allows installation in any position
  • Specialized versions available for long life, harsh environments, direct mounting, and dribble-control applications

Features

320 3-Way Solenoid Valve Features

Flexible Construction for Different Operating Requirements

The ASCO 320 Series is more than a standard general-service solenoid valve. Its range of available constructions allows the valve to be matched to the application's electrical, mechanical, and operating conditions.

Direct-Acting Design

The valve uses direct solenoid actuation, making it suitable for applications where straightforward electrical control of the valve is required.

Multiple 3-Way Functions

Configurations include 3/2 normally closed, 3/2 normally open, and 3/2 universal versions. This gives designers flexibility when determining how the valve should behave when the solenoid is energized or de-energized.

Brass or Stainless-Steel Bodies

Body materials can be selected according to application requirements. Stainless-steel versions are available for applications where additional material compatibility or environmental durability is needed.

No Minimum Pressure Differential

Because the Series 320 is direct-acting, it does not require a minimum operating pressure differential to actuate. This can be particularly useful in systems with low or changing pressure conditions.

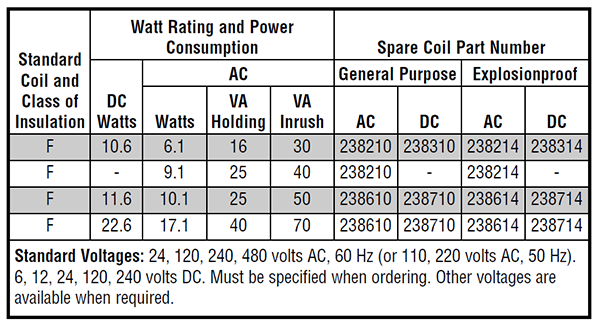

Multiple Electrical Options

The Series 320 is offered with a broad selection of AC and DC voltages and coil configurations, helping simplify integration into existing electrical control systems.

Application-Specific Constructions

Special versions include voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life designs. The long-life construction is particularly useful for applications involving frequent cycling or continuous energization.

Flexible Installation

The valve can be mounted in any position, while NPT connections are incorporated into the valve body to support in-line piping arrangements.

Applications

320 3-Way Solenoid Valve Applications

The ASCO 320 is designed for general-service applications where compact, electrically controlled 3-way fluid control is required. Its combination of construction choices and specialized versions allows it to be used across several industries and equipment types.

Common Applications

Analytical and Diagnostic Equipment

The compact valve design and range of configurations make the Series 320 suitable for fluid-control functions within analytical and diagnostic systems.

Life Sciences Equipment

The valve can be used for controlling compatible media in life sciences equipment where dependable solenoid operation and appropriate material selection are important.

Dust Collection Systems

Specialized configurations can provide the rapid and repeatable operation required in dust collection equipment.

Press Room and Metal Stamping Equipment

The Series 320 can provide general-purpose fluid control for equipment used in printing and metal-forming operations.

General Industrial Equipment

Its broad range of electrical, flow, body-material, and valve-function options makes the Series 320 suitable for many machine and process-control applications.

Media Compatibility

Depending on the specific valve construction, the ASCO 320 Series can be configured for applications involving:

  • Air
  • Inert gases
  • Dry air
  • Water
  • Light oil

The exact media compatibility, pressure range, temperature range, and elastomer selection should always be verified for the specific valve configuration being purchased.

Q & A

320 3-Way Solenoid Valve Q & A

+What is the difference between a 2-way and 3-way ASCO solenoid valve?
A 2-way solenoid valve controls flow between two ports, typically opening or closing a single flow path. A 3-way valve has three ports and can control or redirect flow between those ports. The ASCO 320 is a 3-way series available in normally closed, normally open, and universal configurations.
+Does the ASCO 320 require a minimum pressure differential to operate?
No. The direct-acting ASCO 320 does not require a minimum operating pressure differential. This makes it useful in applications where inlet pressure may be low or variable and where a pilot-operated valve may not be suitable.
+Can an ASCO 320 valve be used with water, air, or gas?
Yes, depending on the specific construction. ASCO 320 configurations are available for compatible applications involving air, inert gas, dry air, water, and light oil. Media compatibility, pressure, temperature, and sealing materials should be checked against the specific part number before ordering.
+How do I choose between a brass and stainless-steel ASCO 320 valve?
The choice depends primarily on the application environment and media compatibility. Brass versions are appropriate for many general-service applications, while stainless-steel constructions can provide an alternative where the application requires a different level of material compatibility or environmental resistance. The specific media and operating conditions should be reviewed when selecting the body material.
+What information do I need to select the correct ASCO 320 solenoid valve?
Start with the required valve function, port size, media, operating pressure and temperature, flow requirement, body material, electrical voltage, and mounting requirements. You should also determine whether the application requires a specialized construction, such as a long-life, harsh-environment, direct-mount, or dribble-control version. Providing these details to Valin can help identify the appropriate ASCO 320 configuration.
